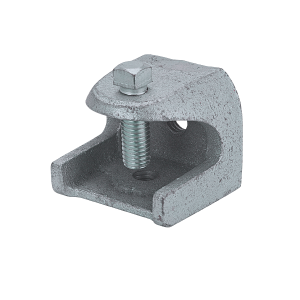

Zsi-Foster BC9025EG Beam Clamp Malleable For 1/4 R

Product Description

The ZSI-FOSTER BC9025EG beam clamp is a malleable iron rod support designed with an electro-galvanized finish. It features a set screw for secure rod support. The beam clamp is suitable for supporting rods with a maximum flange thickness of 1/2" (13mm).

• Malleable Iron construction
• Electro Galvanized finish
• Rod Support
• Maximum flange thickness of 1\2" (13mm)

Product Highlights

Malleable iron beam clamp with electro-galvanized finish and set screw, ideal for rod support applications.

Product Information

Standard Information

• Brand: ZSI-FOSTER
• Manufacturer Part Number: BC9025EG

Technical Specifications

• Material: Malleable Iron
• Finish: Electrogalvanized
• Rod Size: 1/4"-20
• Set Screw Size: 5/16"-18
• B: 13/16" (33 mm)
• L: 1 3/8" (35 mm)
• H: 1 3/8" (35 mm)
• Max Load (W) lbs: 335 (1.49kN)
