Zsi-Foster 022T026 Cush-A-Clamp Clamp (1-3/8 in)

Product Description

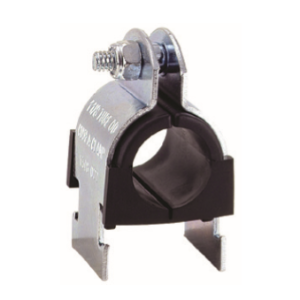

The ZSi-Foster 022T026 Cush-A-Clamp is a channel-mounted cushioned clamp designed to secure 1-3/8 in nominal pipe or conduit. The steel clamp has an electro-galvanized finish and a thermoplastic elastomer cushion to reduce vibration, noise, and galvanic corrosion. The assembly includes a shoulder stud and locknut with a controlled-squeeze design and nylon-insert nut; it fits standard 1-5/8 in channel and tolerates -50 to 275 degrees F.

• Steel construction with electro-galvanized finish; overall clamp width 1.82 in.
• Fits 1-3/8 in tube/conduit and 1-1/4 in copper pipe; channel-mounted for standard 1-5/8 in channel.
• Thermoplastic elastomer cushion resists oils and chemicals; controlled-squeeze design and nylon-insert nut prevent over-tightening and rotation.

Product Highlights

Electro-galvanized steel cushioned clamp for 1-3/8 in tube or 1-1/4 in pipe; channel-mounted; temperature range -50 to 275 degrees F.

Product Information

Standard Information

• Brand: ZSI-FOSTER
• Manufacturer Part Number: 022T026

Technical Specifications

• Brand: ZSi-Foster
• Manufacturer Part Number: 022T026
• Item Number: H138CC
• Product Name: Cush-A-Clamp
• Fits: 1-3/8 in tube/conduit; fits 1-1/4 in copper pipe
• Material: Steel
• Finish: Electro-galvanized
• Cushion Material: Thermoplastic elastomer
• Overall Width: 1.82 in
• Mounting Type: Channel mounted (fits standard 1-5/8 in channel)
• Temperature Range: -50 to 275 degrees F
• Weight: 0.21 lbs
• Design Features: Controlled-squeeze design; shoulder stud and locknut; nylon-insert nut; interlock edges and channel locator legs
