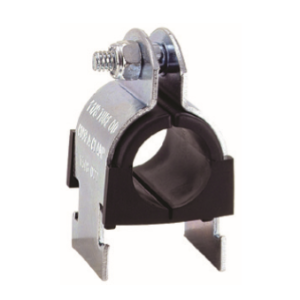

Zsi-Foster 018T022 Cush-A-Clamp (1-1/8 in)

Product Description

The ZSi-Foster 018T022 Cush-A-Clamp is a cushioned clamp for nominal 1-1/8 in pipe or conduit, constructed of steel with an electro-galvanized finish. It features a thermoplastic elastomer cushion that dampens vibration and reduces noise, and has an overall width of 1.57 in. The clamp is designed for channel mounting with a captured shoulder stud and nylon-insert lock nut and is temperature rated -50 to 275 degrees F with a 1000 lb maximum load.

• Cushioned clamp design with thermoplastic elastomer cushion to damp vibration and reduce noise
• Fits nominal 1-1/8 in pipe/conduit; overall width 1.57 in; channel-mount configuration
• Steel construction with electro-galvanized finish; temperature range -50 to 275 degrees F; maximum load 1000 lb

Product Highlights

Cushioned steel channel clamp for nominal 1-1/8 in pipe/conduit with electro-galvanized finish, thermoplastic elastomer cushion, and 1000 lb max load.

Product Information

Standard Information

• Brand: ZSI-FOSTER
• Manufacturer Part Number: 018T022

Technical Specifications

• Brand: ZSi-Foster
• Manufacturer Part Number: 018T022
• Model: 018T022
• Product Name: Cush-A-Clamp
• Product Type: Cushioned clamp (Cush-A-Clamp)
• Material: Steel
• Cushion Material: Thermoplastic elastomer
• Finish: Electro-galvanized
• Nominal Pipe/Conduit Size: 1-1/8 in
• Overall Width: 1.57 in
• Mounting Type: Channel mount
• Locking Mechanism: Nylon-insert lock nut
• Captured Stud: Captured shoulder stud on one clamp half
• Temperature Range: -50 to 275 degrees F
• Maximum Load: 1000 lb
• Height: 2 5/64 in
• Length: 1 37/64 in
• Weight (spec): 0.20 lbs
• Alternate Part Numbers: H118CC, CF3TXL, CL18T022
