Zsi-Foster 010T014 Cush-A-Clamp (5/8 in tube / 1/2 in pipe)

Product Description

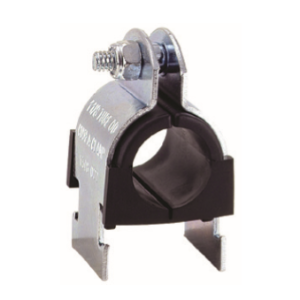

The ZSi-Foster 010T014 Cush-A-Clamp is a channel-mounted cushioned clamp designed for 5/8 in tubing or 1/2 in copper pipe. It uses a gold electro-galvanized steel clamp with a thermoplastic elastomer cushion to absorb shock, reduce vibration and prevent galvanic corrosion. The assembly includes a shoulder stud, controlled-squeeze clamp design and a nylon-insert locknut; the cushion resists most oils and remains stable from -50 to 275 °F.

• Fits 5/8 in tubing or 1/2 in copper pipe; compatible with standard 1-5/8 in wide channel
• Gold electro-galvanized steel clamp with thermoplastic elastomer cushion; nylon-insert nut and shoulder stud
• Controlled-squeeze design prevents over-tightening and rotation; cushion resists oils, chemicals and industrial cleaners; -50 to 275 °F

Product Highlights

Channel-mounted cushioned clamp for securing and protecting tubing and pipe in multi-line channel runs.

Product Information

Standard Information

• Brand: ZSI-FOSTER
• Manufacturer Part Number: 010T014

Technical Specifications

• Brand: ZSi-Foster
• Manufacturer Part Number: 010T014
• Product Name: Cush-A-Clamp
• Fits Tube or Pipe Size: 5/8 in tube or 1/2 in copper pipe
• Mounting Type: Channel mounted (fits 1-5/8 in wide channel)
• Material: Gold electro-galvanized steel; thermoplastic elastomer cushion
• Cushion Material: Thermoplastic elastomer
• Finish: Gold electro-galvanized
• Clamp Width: 1.06 in
• Assembly: Steel clamp with locknut; shoulder stud; nylon-insert nut
• Temperature Range: -50 to 275 °F
• Weight: 0.13 lb
• Design Features: Controlled-squeeze clamp to prevent over-tightening and rotation; interlock cushion edges and channel locator legs
• KR Part Number: CL10T014
