Zsi-Foster 008T012 Cush-A-Clamp 1/2 in Tube (3/8 in Pipe)

Product Description

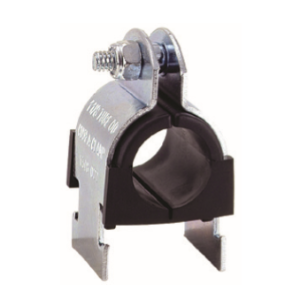

ZSi-Foster 008T012 is a Cush-A-Clamp designed to secure 1/2 in nominal pipe or conduit using an electro-galvanized steel clamp with an internal thermoplastic elastomer cushion. The channel-mounted assembly includes a locknut and controlled-squeeze steel clamp to prevent over-tightening and rotation. The cushion resists oils and many chemicals and is rated for -50 F to 275 F, with interlock edges and channel locator legs to retain the cushion.

• Electro-galvanized steel clamp with thermoplastic elastomer cushion for vibration damping and corrosion resistance
• Fits 1/2 in tubing or nominal 1/2 in conduit; also listed for 3/8 in copper pipe
• Channel-mounted design with locknut, controlled-squeeze clamp and nylon-insert nut; interlock edges and channel locator legs hold cushion in place

Product Highlights

Cushioned, channel-mounted clamp for 1/2 in lines; steel construction; cushion rated -50 F to 275 F.

Product Information

Standard Information

• Brand: ZSI-FOSTER
• Manufacturer Part Number: 008T012

Technical Specifications

• Brand: ZSi-Foster
• Manufacturer Part Number: 008T012
• Product Name: Cush-A-Clamp
• Material: Steel
• Cushion Material: Thermoplastic elastomer
• Finish: Electro-Galvanized
• Nominal Pipe/Conduit Size: 1/2 in
• Tube Size: 1/2 in
• Pipe Size: 3/8 in
• Width: 0.94 in
• Mounting Type: Channel mounted
• Assembly: Steel clamp with locknut and thermoplastic elastomer cushion
• Temperature Range: -50 F to 275 F
• Design Features: Controlled-squeeze clamp; nylon-insert nut; interlock edges; channel locator legs
• Alternate Part Numbers: CL08T012, CF3TUG
