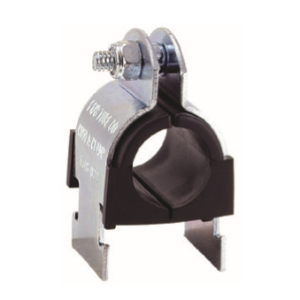

Zsi-Foster 004T008 Cushioned Clamp (1/4 Inch Tube) CF3TTF

Product Description

The Zsi-Foster 004T008 is a cushioned clamp designed to secure 1/4 inch tubing. It uses a steel clamp body with a thermoplastic elastomer cushion to isolate vibration and protect tubing. The channel-mounted design fits standard 1-5/8 inch channels and includes a controlled-squeeze feature with a shoulder stud and nylon-insert nut to prevent rotation and ensure a positive lock.

• Steel clamp with thermoplastic elastomer cushion for vibration damping and tubing protection
• Fits 1/4 in tubing; clamp width 0.62 in; fits standard 1-5/8 in channel
• Channel-mounted design with shoulder stud, controlled-squeeze feature, and nylon-insert nut; operating range -50 to 275 F

Product Highlights

Cushioned clamp for 1/4 in tubing with electro-galvanized steel construction, thermoplastic elastomer cushion, channel-mount, 0.62 in width, and -50 to 275 F temperature range.

Product Information

Standard Information

• Brand: ZSI-FOSTER
• Manufacturer Part Number: 004T008

Technical Specifications

• Brand: Zsi-Foster
• Manufacturer Part Number: 004T008
• Alternate Part Numbers: CF3TTF; H14CC; CL04T008
• Product Type: Cushioned clamp (Cush-A-Clamp)
• Tube Size: 1/4 in
• Material: Steel
• Cushion Material: Thermoplastic elastomer
• Finish: Electro-galvanized
• Clamp Width: 0.62 in
• Fits Channel Width: 1-5/8 in
• Mounting Type: Channel-mounted
• Temperature Range: -50 to 275 F
• Weight: 0.10 lbs
• Locking Mechanism: Nylon-insert nut
• Stud Type: Shoulder stud
• Controlled Squeeze Design: Prevents over-tightening and rotation
