Zsi 726162 strut clamp 1 5/8 inch OD 3 1/4 inch W

Product Description

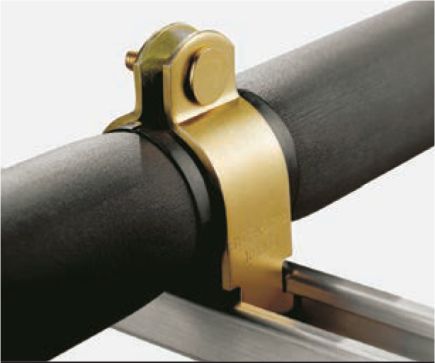

The ZSI 726162 Strut Clamp is designed for securing 1 5/8 inch outside diameter copper tubes with 3/4 inch insulation thickness within a 1 5/8 inch strut channel. Constructed from zinc-plated steel with a TPE cushion, this clamp offers a smooth bore style and a load capacity of 600 lb. It is suitable for elastomeric insulation applications, ensuring secure mounting and vibration dampening.

• Designed for 1 5/8 inch OD copper tubes and 3/4 inch insulation, compatible with 1 5/8 inch strut channels.
• Features a zinc-plated steel construction with a smooth bore style and TPE cushion material.
• Provides a robust load capacity of 600 lb, suitable for single-line applications.

Product Highlights

Durable zinc-plated steel strut clamp with TPE cushion for 1 5/8 inch OD tubing, offering 600 lb load capacity.

Product Information

Standard Information

• Brand: ZSI
• Manufacturer Part Number: 726162
• Country of Origin: United States

Technical Specifications

• Clamp Type: Strut Clamp
• Application: Elastomeric Insulation
• Mount Type: Channel
• Clamp Style: Insulation Coupling
• Load Capacity: 600 lb
• Overall Width: 3 1/4 in
• Material: Zinc-Plated Steel
• Overall Height: 5 1/4 in
• Overall Length: 2 61/64 in
• Bore Style: Smooth
• Cushion Material: TPE
• Installed Height: 6 7/8 in
• Maximum Operating Temperature: 225 Degrees F
• Number of Lines Supported: 1
• Compatible Outside Diameter: 1 5/8 inch
• Finish: Zinc-Plated
• Measurement System: Inch
• Compatible Strut Channel Width: 1 5/8 inch
• Compatible Insulation Thickness: 3/4 inch
• Number of Mounting Holes: 0
• Compatible Manufacturer Part Number: Wesanco Strut
• Series: Klo-Shure
