Zsi 726112 strut clamp 1 1/8 inchesod, 2 3/4 inchesw

Product Description

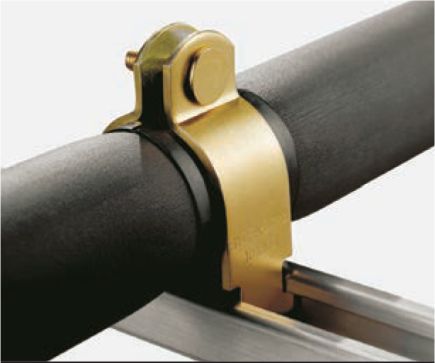

The ZSI 726112 Strut Clamp is a zinc-plated steel clamp designed for securing pipes or tubes with elastomeric insulation in channel mounting systems. Featuring a smooth bore style and TPE cushion material, it accommodates a 1 1/8 inch copper tube size and 3/4 inch insulation thickness. This clamp offers a load capacity of 430 lb and is compatible with 1 5/8 inch wide strut channels.

• Constructed from zinc-plated steel with a smooth bore for secure pipe retention.
• Features a TPE cushion material, suitable for elastomeric insulation applications.
• Designed for 1 1/8 inch copper tube size and 3/4 inch insulation thickness, with a 430 lb load capacity.

Product Highlights

Durable zinc-plated steel strut clamp with TPE cushion, ideal for securing 1 1/8 inch OD insulated pipes in channel mounts.

Product Information

Standard Information

• Brand: ZSI
• Manufacturer Part Number: 726112
• Country of Origin: United States

Technical Specifications

• Product Type: Strut Clamp
• Application: Elastomeric Insulation
• Mounting Type: Channel
• Clamp Style: Insulation Coupling
• Load Capacity: 430 lb
• Overall Width: 2 3/4 in
• Clamp Material: Steel
• Overall Height: 4 3/4 in
• Overall Length: 2 61/64 in
• Clamp Bore Style: Smooth
• Cushion Material: TPE
• Installed Height: 6 3/8 in
• Temperature Rating: General Purpose
• Number of Lines: 1
• Clamp Material Finish: Zinc-Plated Steel
• Strut Channel Width Compatibility: 1 5/8 in
• Insulation Thickness Compatibility: 3/4 in
• Number of Mounting Holes: 0
• Compatible Strut Manufacturer: Wesanco
• Maximum Outside Diameter Compatibility: 1 1/8 in
• Maximum Operating Temperature: 225 Degrees F
