Zsi 726087 strut clamp 7/8 inchesOD 2 1/2 inchesW

Product Description

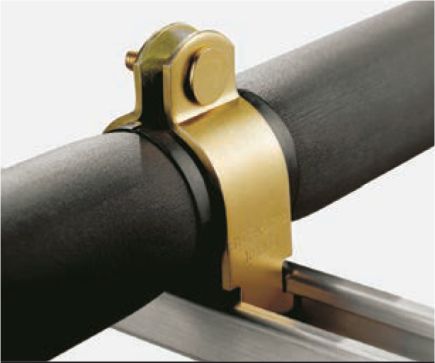

The ZSI 726087 Strut Clamp is a channel-mount clamp designed for securing 7/8 inch outside diameter pipes or tubes, particularly with elastomeric insulation. Constructed from zinc-plated steel with a smooth bore style, it includes a TPE cushion material for protection. This clamp offers a load capacity of 245 lb and is compatible with 1 5/8 inch wide Wesanco Strut channels. It accommodates insulation up to 3/4 inch thick and has a maximum operating temperature of 225 degrees F.

• Smooth clamp bore style with zinc-plated steel construction.
• TPE cushion material protects secured items and supports a 245 lb load capacity.
• Designed for 7/8 inch copper tube size and compatible with 1 5/8 inch Wesanco Strut channels.

Product Highlights

Durable zinc-plated steel strut clamp with TPE cushion, 245 lb load capacity, for 7/8 inch OD pipes, channel mount.

Product Information

Standard Information

• Brand: ZSI
• Manufacturer Part Number: 726087
• Country of Origin: United States

Technical Specifications

• Type: Strut Clamp
• Application: Elastomeric Insulation
• Mounting Type: Channel
• Style: Insulation Coupling
• Load Capacity: 245 lb
• Overall Width: 2.5 in
• Clamp Material: Zinc-Plated Steel
• Overall Height: 4.59375 in
• Overall Length: 2.953125 in
• Clamp Bore Style: Smooth
• Cushion Material: TPE
• Installed Height: 6.21875 in
• Number of Lines: 1
• For Copper Tube Size: 0.875 in
• Clamp Material Finish: Zinc-Plated
• For Strut Channel Width: 1.625 in
• For Insulation Thickness: 0.75 in
• Number of Mounting Holes: 0
• Compatible Manufacturer Part Number: Wesanco Strut
• For Maximum Outside Diameter: 0.875 in
• Maximum Operating Temperature: 225 Degrees F
