Zsi 726075 strut clamp 3/4 inchesOD 2 3/8 inchesW

Product Description

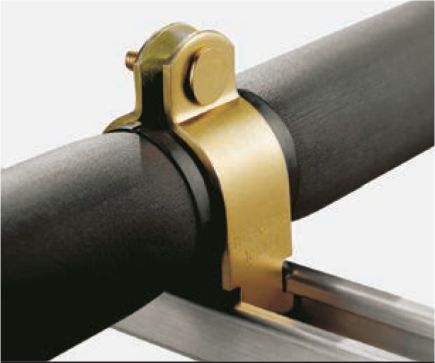

The ZSI 726075 Strut Clamp is designed for securing 3/4 inch outside diameter copper tubes with 3/4 inch insulation thickness within a 1 5/8 inch strut channel. This zinc-plated steel clamp features a smooth bore style and a TPE cushion material, providing secure mounting for a single line. It is suitable for use on elastomeric insulation and has a maximum operating temperature of 225 degrees F.

• Constructed from zinc-plated steel with a TPE cushion for secure tube retention.
• Designed to accommodate 3/4 inch outside diameter tubes with 3/4 inch insulation.
• Compatible with 1 5/8 inch strut channels and Wesanco Strut systems.

Product Highlights

Zinc-plated steel strut clamp with TPE cushion for 3/4 inch OD tubes in 1 5/8 inch channels.

Product Information

Standard Information

• Brand: ZSI
• Manufacturer Part Number: 726075
• Country of Origin: United States

Technical Specifications

• Clamp Type: Strut Clamp
• For Use On: Elastomeric Insulation
• Mount Type: Channel
• Clamp Style: Insulation Coupling
• Clamp Material: Zinc-Plated Steel
• Cushion Material: TPE
• Installed Height: 6 1/64 in
• For Number of Lines: 1
• For Copper Tube Size: 3/4 in
• System of Measurement: Inch
• For Strut Channel Width: 1 5/8 in
• For Insulation Thickness: 3/4 in
• Number of Mounting Holes: 0
• Compatible Mfr Part Number: Wesanco Strut
• For Maximum Outside Diameter: 3/4 in
• Maximum Operating Temperature: 225 Degrees F
