Zsi 726050 strut clamp 1/2 inchesOD 2 1/8 inchesW

Product Description

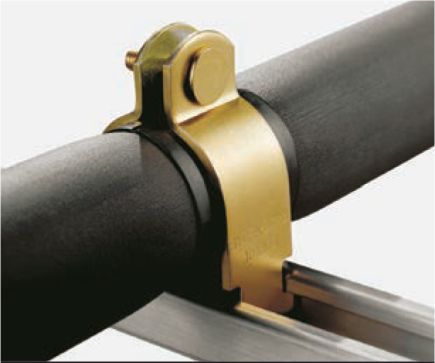

The ZSI 726050 Strut Clamp is designed for securing single lines with a 1/2 inch outside diameter, suitable for copper tubes and elastomeric insulation. Constructed from zinc-plated steel, this strut clamp offers durability and corrosion resistance. It features a smooth bore style and a TPE cushion material, providing secure and non-abrasive support for various applications. This channel-mount clamp is compatible with Wesanco Strut systems, ensuring a reliable installation for industrial and commercial settings.

• Clamp material is zinc-plated steel with a smooth bore style for secure mounting.
• Features a TPE cushion material, ideal for protecting 1/2 inch copper tubes with 3/4 inch insulation.
• Designed for single line applications, compatible with 1 5/8 inch strut channel widths.

Product Highlights

Zinc-plated steel strut clamp with TPE cushion for 1/2 inch OD lines, channel mount.

Product Information

Standard Information

• Brand: ZSI
• Manufacturer Part Number: 726050
• Country of Origin: United States

Technical Specifications

• Item: Strut Clamp
• Clamp Type: Strut Clamp
• For Use On: Elastomeric Insulation
• Mount Type: Channel
• Clamp Style: Insulation Coupling
• Overall Width: 2 1/8 in
• Clamp Material: Zinc-Plated Steel
• Overall Height: 3 61/64 in
• Overall Length: 2 61/64 in
• Clamp Bore Style: Smooth
• Cushion Material: TPE
• Installed Height: 5 9/16 in
• Temperature Rating: General Purpose
• For Number of Lines: 1
• For Copper Tube Size: 1/2 in
• For Strut Channel Width: 1 5/8 in
• For Insulation Thickness: 3/4 in
• Number of Mounting Holes: 0
• Compatible Mfr Part Number: Wesanco Strut
• For Maximum Outside Diameter: 1/2 in
• Maximum Operating Temperature: 225 Degrees F
