Zsi 726025 strut clamp 1/4 inch OD, 1 7/8 inch W

Product Description

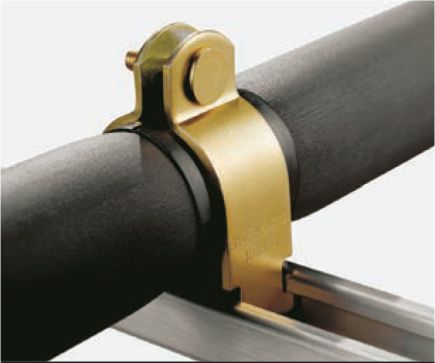

The ZSI 726025 Strut Clamp is a channel-mounted insulation coupling designed for securing 1/4 inch copper tubing with 3/4 inch insulation. Constructed from durable zinc-plated steel with a smooth bore and TPE cushion, it ensures stable support for a single line. This clamp is compatible with 1 5/8 inch strut channels and Wesanco Strut systems, offering reliable performance for various insulated pipe applications.

• Zinc-plated steel construction with TPE cushion for secure insulation.
• Designed for 1/4 inch copper tube with 3/4 inch insulation thickness.
• Channel mount type for 1 5/8 inch strut channels.

Product Highlights

Durable zinc-plated steel strut clamp with TPE cushion for 1/4 inch OD insulated tubing.

Product Information

Standard Information

• Brand: ZSI
• Manufacturer Part Number: 726025
• Country of Origin: United States

Technical Specifications

• Product Type: Strut Clamp
• Mounting Type: Channel
• Clamp Style: Insulation Coupling
• Material: Zinc-Plated Steel
• Cushion Material: TPE
• Clamp Bore Style: Smooth
• For Use On: Elastomeric Insulation
• For Copper Tube Size: 1/4 in
• For Maximum Outside Diameter: 1/4 in
• For Insulation Thickness: 3/4 in
• For Strut Channel Width: 1 5/8 in
• For Number of Lines: 1
• Overall Width: 1 7/8 in
• Overall Height: 3 1/2 in
• Overall Length: 2 61/64 in
• Installed Height: 5 1/8 in
• Maximum Operating Temperature: 225 Degrees F
• Temperature Rating: General Purpose
• Compatible Mfr Part Number: Wesanco Strut
• Model: AK7
• Product Line: Hydra-Zorb Klo-Shure
• System of Measurement: Inch
• Number of Mounting Holes: 0
