Zsi 724137 strut clamp for 1 3/8 inch size copper tube

Product Description

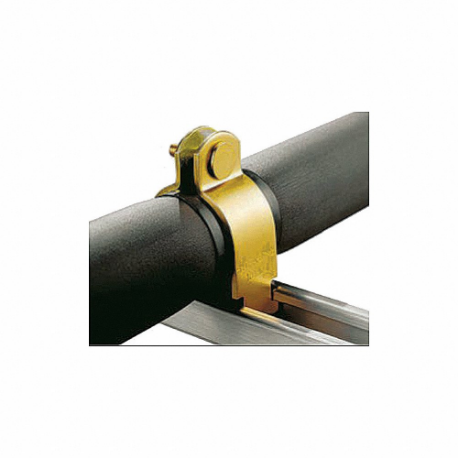

The ZSI 724137 Strut Clamp is designed for securing 1 3/8 inch copper tubing, featuring zinc-plated steel construction for durability. This insulation coupling style clamp is suitable for use with elastomeric insulation, accommodating a maximum outside diameter of 1 3/8 inches. It offers a load capacity of 625 lbs and can operate effectively up to 225°F. The clamp is channel-mounted, fitting strut channels with a width of 1 5/8 inches, ensuring a secure installation for various applications.

• Constructed from zinc-plated steel with a TPE cushion for secure tube retention.
• Designed for 1 3/8 inch copper tube with 1/2 inch insulation thickness.
• Features a 625 lbs load capacity and a maximum operating temperature of 225°F.

Product Highlights

Durable zinc-plated steel strut clamp for 1 3/8 inch copper tubing, channel-mounted with a 625 lbs load capacity.

Product Information

Standard Information

• Brand: ZSI
• Manufacturer Part Number: 724137
• Country of Origin: US

Technical Specifications

• Clamp Type: Strut Clamp
• Clamp Material: Steel
• Clamp Material Finish: Zinc Plated
• Clamp Style: Insulation Coupling
• Cushion Material: TPE
• Copper Tube Size: 1 3/8"
• Insulation Thickness: 1/2"
• Max. Outside Diameter: 1 3/8"
• Strut Channel Width: 1 5/8"
• Compatible Insulation Type: Elastomeric Insulation
• Overall Height: 4 3/4"
• Installed Height: 6 3/8"
• Overall Length: 2 61/64"
• Load Capacity: 625 lbs.
• Maximum Operating Temperature: 225°F
• Mounting Type: Channel
• Number of Mounting Holes: 0
• Overall Width: 2 1/2"
