Zsi 724087 strut clamp 7/8 inchesOD 2 inchesW

Product Description

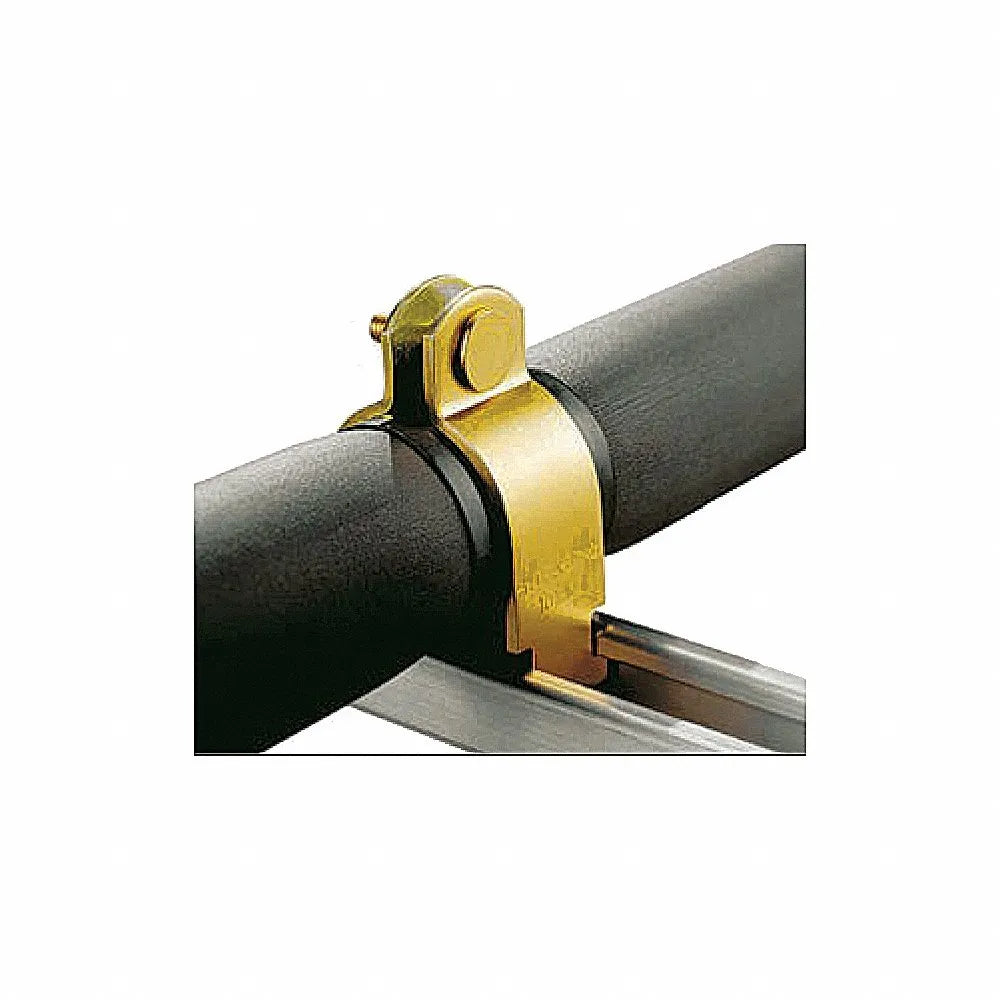

The ZSI 724087 Strut Clamp is a zinc-plated steel component designed for securing 7/8 inch outside diameter copper tubes with 1/2 inch elastomeric insulation. This smooth bore clamp features a TPE cushion material, providing a load capacity of 230 pounds. It is suitable for 1 5/8 inch strut channels and operates effectively up to 225 degrees Fahrenheit, ensuring secure mounting for single lines.

• Zinc-plated steel construction with a smooth bore and TPE cushion material.
• Designed for 7/8 inch copper tube with 1/2 inch insulation, supporting a 230 lb load capacity.
• Compatible with 1 5/8 inch strut channels and Wesanco Strut, for single line applications.

Product Highlights

Durable zinc-plated steel strut clamp with TPE cushion, ideal for securing 7/8 inch OD tubes in 1 5/8 inch strut channels.

Product Information

Standard Information

• Brand: ZSI
• Manufacturer Part Number: 724087
• Country of Origin: United States

Technical Specifications

• Item Type: Strut Clamp
• Clamp Type: Strut Clamp
• Application: Elastomeric Insulation
• Mounting Type: Channel
• Clamp Style: Insulation Coupling
• Load Capacity: 230 lb
• Overall Width: 2 in
• Overall Height: 4 5/32 in
• Overall Length: 2 61/64 in
• Clamp Bore Style: Smooth
• Cushion Material: TPE
• Installed Height: 5 49/64 in
• Number of Lines: 1
• Copper Tube Size Compatibility: 7/8 in
• Clamp Material: Zinc-Plated Steel
• Clamp Material Finish: Zinc-Plated
• Mounting Hole Diameter: Not Applicable
• Strut Channel Width Compatibility: 1 5/8 in
• Insulation Thickness Compatibility: 1/2 in
• Number of Mounting Holes: 0
• Compatible Manufacturer Part Number: Wesanco Strut
• Included Insulation Thickness: Not Applicable
• Maximum Operating Temperature: 225 Degrees F
