Zsi 724062 strut clamp 5/8 inch OD 1 3/4 inch W AK7

Product Description

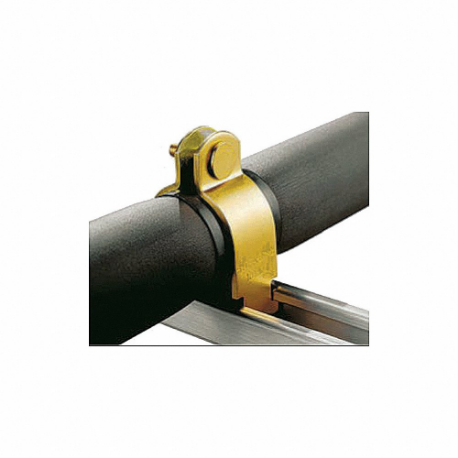

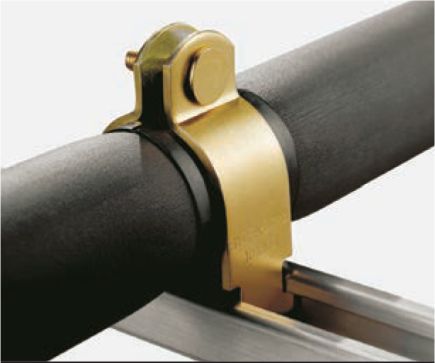

The ZSI 724062 Strut Clamp is a zinc-plated steel clamp designed for securing 5/8 inch copper tubing with 1/2 inch elastomeric insulation within a 1 5/8 inch strut channel. Featuring a smooth bore style and TPE cushion material, it accommodates a maximum outside diameter of 5/8 inch. This clamp is suitable for single-line applications and has an installed height of 5 9/16 inches.

• Zinc-plated steel construction ensures durability and corrosion resistance.
• Designed for 5/8 inch copper tube with 1/2 inch insulation, fitting 1 5/8 inch strut channels.
• Features a smooth bore style and TPE cushion for secure, vibration-dampening support.

Product Highlights

This ZSI 724062 strut clamp provides secure mounting for insulated copper tubing in strut channel systems.

Product Information

Standard Information

• Brand: ZSI
• Manufacturer Part Number: 724062
• Country of Origin: US

Technical Specifications

• Type: Strut Clamp
• Clamp Type: Strut Clamp
• Application: Elastomeric Insulation
• Mounting Type: Channel
• Clamp Style: Insulation Coupling
• Material: Steel
• Clamp Bore Style: Smooth
• Cushion Material: TPE
• Installed Height: 5 9/16 in
• Temperature Rating: General Purpose
• Number of Lines: 1
• For Copper Tube Size: 5/8 in
• Material Finish: Zinc-Plated Steel
• For Strut Channel Width: 1 5/8 in
• For Insulation Thickness: 1/2 in
• Number of Mounting Holes: 0
• Compatible Manufacturer Part Number: Wesanco Strut
• For Maximum Outside Diameter: 5/8 in
• Maximum Operating Temperature: 225 Degrees F
• Series: Klo-Shure
• Part Number: AK7
• Cross Reference: 802TR9
