Zsi 724050 Strut Clamp 1/2 inchesOD 1 5/8 inchesW

Product Description

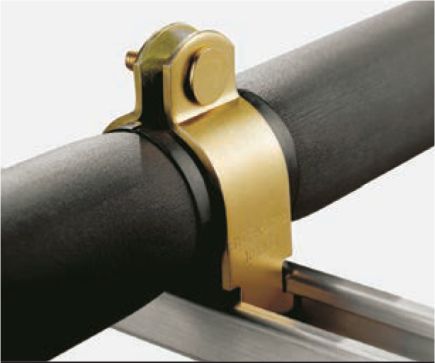

The ZSI 724050 Strut Clamp is a zinc-plated steel clamp designed for securing a single line with a 1/2 inch outside diameter to a 1 5/8 inch wide strut channel. Featuring a smooth bore style and a TPE cushion, it provides secure channel mounting for copper tubes with 1/2 inch insulation thickness. This durable clamp is suitable for elastomeric insulation applications, ensuring stable installation.

• Constructed from durable zinc-plated steel for enhanced corrosion resistance.
• Features a smooth bore style with a TPE cushion for secure, protective line retention.
• Designed for 1/2 inch maximum outside diameter lines and 1 5/8 inch wide strut channels.

Product Highlights

Durable zinc-plated steel strut clamp with TPE cushion, ideal for 1/2 inch OD lines on 1 5/8 inch channels.

Product Information

Standard Information

• Brand: ZSI
• Manufacturer Part Number: 724050
• Country of Origin: United States

Technical Specifications

• Product Type: Strut Clamp
• Clamp Type: Strut Clamp
• Application: Elastomeric Insulation
• Mounting Type: Channel
• Clamp Style: Insulation Coupling
• Overall Width: 1 5/8 inch
• Clamp Material: Steel
• Overall Height: 3 45/64 inch
• Overall Length: 2 61/64 inch
• Bore Style: Smooth
• Cushion Material: TPE
• Installed Height: 5 5/16 inch
• Temperature Rating: General Purpose
• Number of Lines: 1
• Copper Tube Size: 1/2 inch
• Clamp Material Finish: Zinc-Plated Steel
• Strut Channel Width: 1 5/8 inch
• Insulation Thickness: 1/2 inch
• Number of Mounting Holes: 0
• Compatible Manufacturer Part Number: Wesanco Strut
• Maximum Outside Diameter: 1/2 inch
• Maximum Operating Temperature: 225 Degrees F
