Zsi 100087 cushion clamp 7/8 inch 25 pack C1AG17

Product Description

The ZSI 100087 Cushion Clamp provides robust support for 7/8 inch tubing. Constructed with a zinc plated steel clamp, Steel Nylock nut, and steel weld stud, this product ensures reliable performance in diverse industrial environments. It facilitates supporting fluid conductors without disturbing adjacent ones, making it suitable for system maintenance. Fast and uncomplicated installation minimizes downtime.

• Provides robust support for 7/8 inch tubing.
• Constructed with a zinc plated steel clamp, Steel Nylock nut, and steel weld stud.
• Features fast and uncomplicated installation.

Product Highlights

Robust support for 7/8 inch tubing with durable construction and easy installation.

Product Information

Standard Information

• Brand: ZSI
• Manufacturer Part Number: 100087

Technical Specifications

• Color: Chrome
• Material: Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud
• Package Quantity: 25
• Series: Hydra-Zorb
• Size: 7/8 inch Tubing
• Type: Cushion

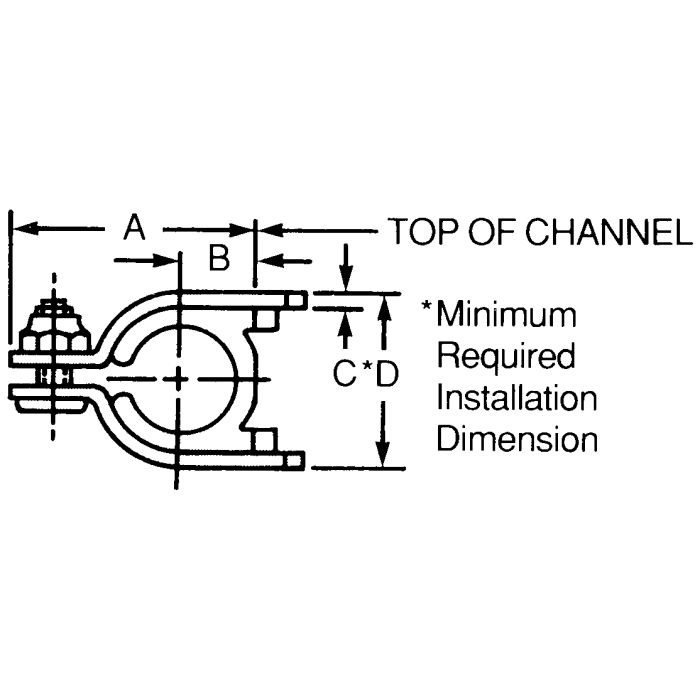

• A: 1.91
• B: 0.58
• C: 0.08
• D: 1.45
• Alternate MPNs: C1AG17, MI-02218074, MINO-01771X00111
• Operating Temperature: -65°F to 275°F
