Zsi 100050 cushion clamp 25bx 1/2 inches 50

Product Description

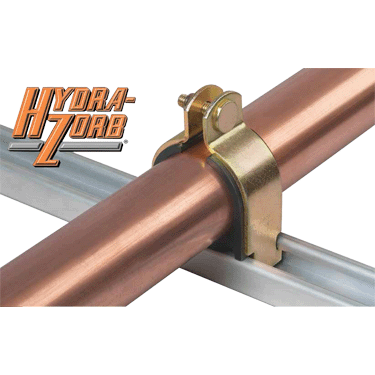

The ZSI 100050 Hydrazorb Support Clamp is essential for robust pipe and tubing systems. Designed for 1/2 inch tubing, it is crafted from durable zinc plated steel, ensuring longevity in various applications. The clamp provides efficient support and stability, allowing for seamless fluid conductor management and enabling the addition or removal of conductors without affecting adjacent ones. The cushion's temperature range is rated from -65°F to 275°F.

• Essential for robust pipe and tubing systems
• Designed for 1/2 inch tubing
• Crafted from durable zinc plated steel

Product Highlights

Durable zinc plated steel clamp for 1/2 inch tubing, offering efficient support and easy conductor management with a wide temperature range.

Product Information

Standard Information

• Brand: ZSI
• Manufacturer Part Number: 100050

Technical Specifications

• Material: Steel
• Quantity: 50
• Series: Hydra-Zorb
• Tubing Size: 1/2"
• Type: Cushion
• Dimension A: 1.36
• Dimension B: 0.34
• Dimension C: 0.08
• Dimension D: 0.87
• Component Materials: Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud
