Zsi 100025 cushion clamp 25BX 1/4 inch 25 pack 100025-CTN25

Product Description

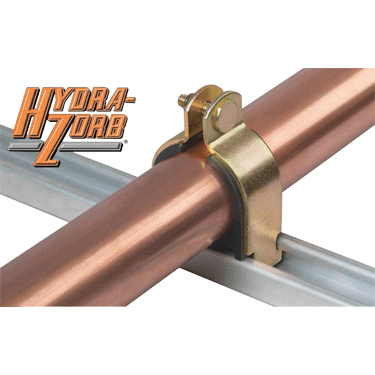

The ZSI 100025 Hydra-Zorb 100-200 Series Pipe & Tubing Support Clamp is designed for efficient installation and secure support of 1/4 inch tubing. Constructed with a zinc-plated steel clamp, steel Nylock nut, and a steel weld stud/bolt, this robust assembly ensures durability. It allows for easy addition or removal of fluid conductors without disturbing adjacent components, making it suitable for dynamic systems. The cushion is rated for temperatures from -65°F to 275°F.

• Designed for efficient installation and secure support of 1/4 inch tubing.
• Constructed with zinc-plated steel clamp, steel Nylock nut, and steel weld stud/bolt for durability.
• Allows easy addition or removal of fluid conductors without disturbing adjacent components.

Product Highlights

Securely supports 1/4 inch tubing with durable zinc-plated steel construction and a temperature-rated cushion.

Product Information

Standard Information

• Brand: ZSI
• Manufacturer Part Number: 100025

Technical Specifications

• Manufacturer: ZSI-FOSTER
• MPN: 100025
• Alternate Part Numbers: 100025-CTN25, 817198010267, STRHDZ 14, C1EX25, MI-02081884, MINO-01771X10350
• Color: Chrome
• Construction Materials: Clamp: Zinc plated steel, Nut: Steel Nylock, Stud/Bolt: Steel weld stud
• Package Quantity: 25
• Series: Hydra-Zorb
• Tubing Size: 1/4 inch
• Type: Cushion
• Dimension A: 1.11
• Dimension B: 0.22
• Dimension C: 0.08
• Dimension D: 0.62
• Unit of Measure: Each
• Thread Sealant: No
• Cushion Temperature Range: -65°F to 275°F
