Zoro G2358268 Underground Enclosure Cover 1 in H x 12 in W x 12 in L (PC1212CA0009)

Product Description

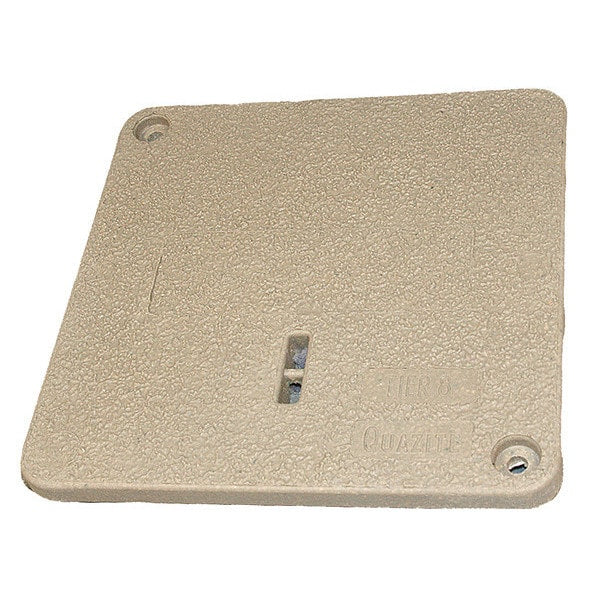

Zoro G2358268 is an underground enclosure cover made from monolithic polymer concrete, designed for use with 14-3/4 in x 14-3/4 in enclosures and rated for non-deliberate traffic areas. The cover features a 1/2 in x 2 in pull slot and secures with two stainless steel hex head bolts. It is UL listed to ANSI/SCTE 77 2007 Tier 8 and is uninsulated.

• Monolithic polymer concrete construction with load rating of 8,000 lb
• Dimensions: 1 in H x 12 in W x 12 in L; overall 12 7/8 in x 12 7/8 in x 3/4 in
• Includes 2 stainless steel hex head bolts (3/8-16 x 1-1/2 UNC) and 1/2 in x 2 in cover pull slot

Product Highlights

Underground polymer concrete cover, 8,000 lb load rating, UL listed ANSI/SCTE 77 Tier 8

Product Information

Standard Information

• Brand: ZORO
• Manufacturer Part Number: G2358268
• Country of Origin: Multiple

Technical Specifications

• Manufacturer Part Number: PC1212CA0009
• Zoro Part Number: G2358268
• UPC: 662037100933
• Country of Origin: Multiple
• Item: Underground Enclosure Cover
• Material: Polymer concrete (monolithic)
• Dimensions (listed): 1 in H x 12 in W x 12 in L
• Overall Dimensions (listed): 12 7/8 in L x 12 7/8 in W x 3/4 in H
• For Enclosure Opening Size: 14 3/4 in x 14 3/4 in
• Load Rating: 8,000 lb
• Cover Pull Slot Size: 1/2 in x 2 in
• Cover Bolt Type: 2 stainless steel hex head bolts 3/8-16 x 1-1/2 UNC
• Cover Logo: Blank
• Type: PC
• Standards: UL listed to ANSI/SCTE 77 2007 Tier 8
• Insulation: Uninsulated
• Application: For areas with non-deliberate traffic only
