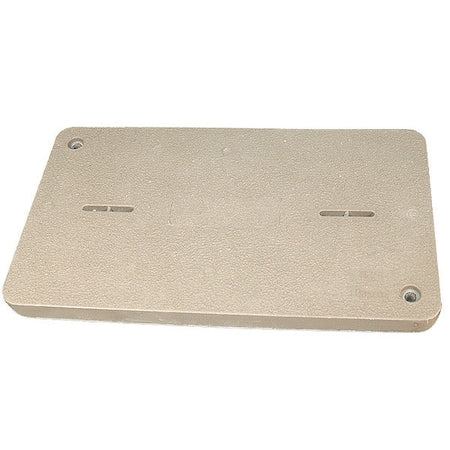

Zoro G2358170 Quazite underground enclosure cover 2 in H x 17 in W x 30 in L (for 19-1/4 in x 32-1/4 in enclosure) PG1730CA0009

Product Description

The Zoro G2358170 is a Quazite PG-style underground enclosure cover constructed of monolithic polymer concrete, sized 2 in H x 17 in W x 30 in L for use with 19-1/4 in x 32-1/4 in enclosure openings. The cover is uninsulated, UL listed to ANSI/SCTE 77 2007 Tier 8, and rated for 8,000 lb load in non-deliberate traffic areas. It includes two stainless steel hex head bolts and a 1/2 in x 4 in pull slot.

• Monolithic polymer concrete construction with blank cover logo
• Load rating 8,000 lb; UL listed to ANSI/SCTE 77 2007 Tier 8
• Includes 2 stainless steel hex head bolts (3/8-16 x 2-3/4 UNC) and 1/2 in x 4 in cover pull slot

Product Highlights

PG-style underground cover, 2 in x 17 in x 30 in, uninsulated, for 19-1/4 in x 32-1/4 in openings; 8,000 lb load rating.

Product Information

Standard Information

• Brand: ZORO
• Manufacturer Part Number: G2358170
• Country of Origin: Multiple

Technical Specifications

• Brand: Zoro
• Zoro Number: G2358170
• Manufacturer Part Number: PG1730CA0009
• UPC: 662037101114
• Country of Origin: Multiple
• Item Type: Underground Enclosure Cover
• Type: PG
• Material: Polymer concrete
• Cover Logo: Blank
• Dimensions: 2 in H x 17 in W x 30 in L
• Overall Dimensions: Overall Height 2 in x Overall Width 17 1/2 in x Overall Length 30 1/2 in
• For Enclosure Opening Size: 19-1/4 in x 32-1/4 in
• For Use With: 19-1/4 in x 32-1/4 in enclosure
• Load Rating: 8,000 lb
• Cover Bolt Type: 2 stainless steel hex head bolts 3/8-16 x 2-3/4 UNC
• Cover Pull Slot Size: 1/2 in x 4 in
• Standards: UL listed to ANSI/SCTE 77 2007 Tier 8
• Insulated: Uninsulated
• Description/Special Features: For areas with non-deliberate traffic only
