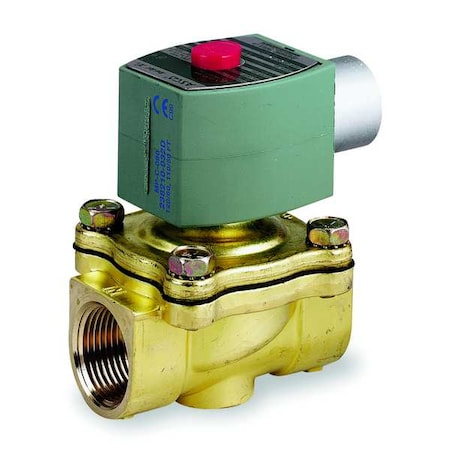

Zoro G2102913 Solenoid Valve 110/120V AC (3/4 in) 8210G009

Product Description

Zoro G2102913 is a two-way, normally closed pilot-operated solenoid valve rated 110/120V AC for air, inert gas, light oil and water. The valve features a 3/4 in NPTF inlet/outlet with a 3/4 in orifice (Cv 5), brass body with NBR seals, a watertight coil enclosure with F-class insulation and IP66 rating, and an operating pressure differential of 5 to 125 psi. Includes coil and seal; UL listed.

• Two-way, normally closed, pilot-operated design with Cv 5 and 3/4 in NPTF connections
• Watertight F-class coil enclosure, IP66 and NEMA 1,2,3,3S,4,4X ratings; 110/120V AC, 50/60 Hz, 6.1 W
• Brass body with NBR seals, operating pressure differential 5 to 125 psi; ambient range 14°F to 140°F; includes coil and seal

Product Highlights

High-flow 2-way solenoid valve, 110/120V AC, 3/4 in NPTF, Cv 5, IP66 watertight coil enclosure, brass body with NBR seals, UL listed

Product Information

Standard Information

• Brand: ZORO
• Manufacturer Part Number: G2102913
• Country of Origin: Mexico

Technical Specifications

• Brand: Zoro
• MPN: G2102913
• Manufacturer Part Number: 8210G009
• Item: Solenoid Valve
• Valve Type: High Flow, Two-Way (2-Position)
• Operation Type: Pilot Operated
• Valve Starting Configuration: Normally Closed
• Nominal Pipe Size: 3/4 in
• Orifice Diameter: 3/4 in
• Coefficient of Volume (Cv): 5
• Inlet Connection Type: 3/4 in NPTF
• Outlet Connection Type: 3/4 in NPTF
• Thread Type: NPT / NPTF
• For Media: Air, Inert Gas, Light Oil, Water
• Operating Pressure Differential: 5 to 125 psi (air, inert gas, light oil, water)
• Fluid Temperature - Maximum: 180 Degrees F
• Ambient Temperature Range: 14 Degrees F to 140 Degrees F
• Input Voltage: 110/120V AC, 50/60 Hz
• Wattage: 6.1 W
• Frequency: 50 Hz, 60 Hz
• Coil Enclosure: Watertight
• Coil Insulation Class: F
• Seal Material: NBR
• Body Material: Brass
• Electrical Connections: 1/2 in Conduit Hub
• IP Rating: IP66
• NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
• Response Time: 1 sec
• Mounting Orientation: Vertical
• Includes Coil: Yes
• Includes Seal: Yes
• Standards / Certifications: UL Listed
• Overall Height: 3-5/8 in
• Overall Length: 2-13/16 in
• Overall Width: 2-5/16 in
• Application: Air compressors, car wash equipment, industrial water control, laundry equipment, pumps
