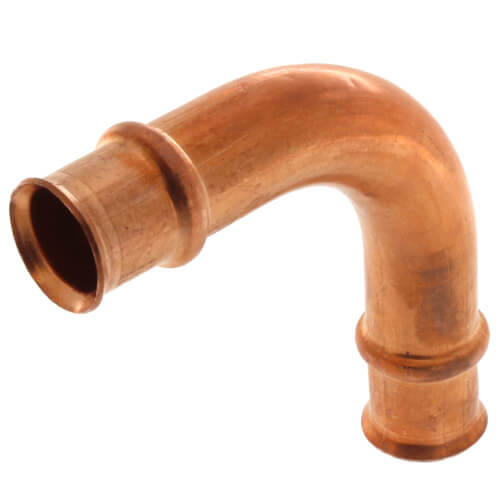

ZOOMLOCK PZK-90E12-HNBR 90 Degree Elbow 3/4 OD

Product Description

The ZOOMLOCK PZK-90E12-HNBR is an essential 90-degree elbow fitting for connecting copper pipes without the need for brazing. It allows for easy installations and a solid connection each time. This one-piece design ensures a secure fit that prevents leaks and simplifies your plumbing tasks.

• Designed for braze-free copper connections
• Provides a secure and leak-proof seal
• Compatible with various copper tubing types

Product Highlights

The elbow is suitable for annealed copper tubing types ACR, M, L, and K, except for one and one-eighth inches. Its robust design supports a maximum pressure of seven hundred psi, making it reliable for demanding applications.

Product Information

Standard Information

• Fitting Angle: 90 Degree
• Outside Diameter: 3/4 inches

Technical Specifications

• Connection Size: 3/4 inches
• Approved Tubing Materials: Copper
• Maximum Rated Pressure: 700 psi
• Maximum Burst Pressure: 3000 psi
• Vacuum Pressure Capability: 20 microns
• Continuous Operating Temperature: 250 degrees Fahrenheit
• O-Ring Temperature Rating: -40 to 300 degrees Fahrenheit
• Insertion Depth: 1-1/4 inches
