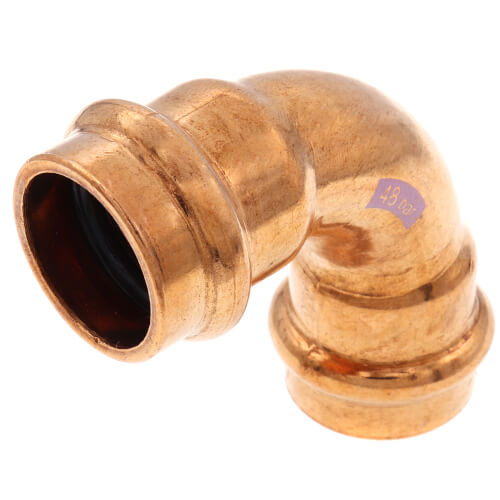

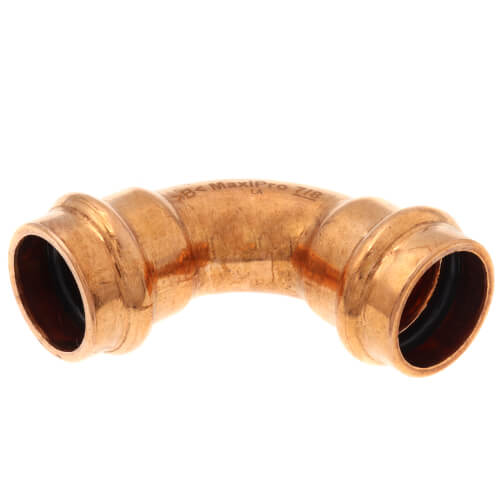

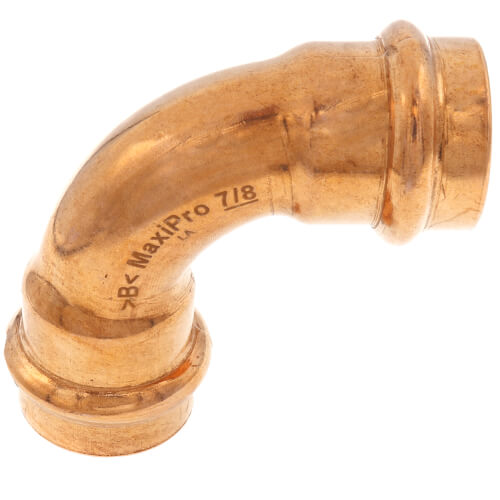

ZOOMLOCK 870606 ZOOMLOCK MAX 90 Degree Elbow

Product Description

The ZOOMLOCK MAX 870606 is a press fitting designed for effective connections in air conditioning and refrigeration systems. This 90-degree elbow fitting enables secure, leak-free connections on copper tubing without the need for brazing.

• Fitting type: 90 Degree Elbow
• Inlet and Outlet Connection Size: 7/8 inch
• Maximum Operating Pressure: 700 psi

Product Highlights

This product is suitable for various refrigerants, ensuring a versatile connection option. It simplifies installation with its press connection method, which helps maintain the cleanliness of the system while providing repeatable connections.

Product Information

Standard Information

• Country of Origin: Not specified
• UPC: Not specified

Technical Specifications

• Fitting Type: 90 Degree Elbow
• Inlet Connection Size: 7/8 in
• Outlet Connection Size: 7/8 in
• Minimum Burst Pressure: 2100 psi
• Maximum Operating Temperature: 250 F
• Minimum Operating Temperature: -40 F
• Maximum Operating Pressure: 700 psi
• O-Ring Material: HNBR
• Material: Copper/HNBR
• Connection Type: Press
• Pressure Rating: 700 PSI
• Temperature Rating: -40 to 250 Deg. F
• Angle: 90
• Standards: ASME, ASTM, ISO, UL
