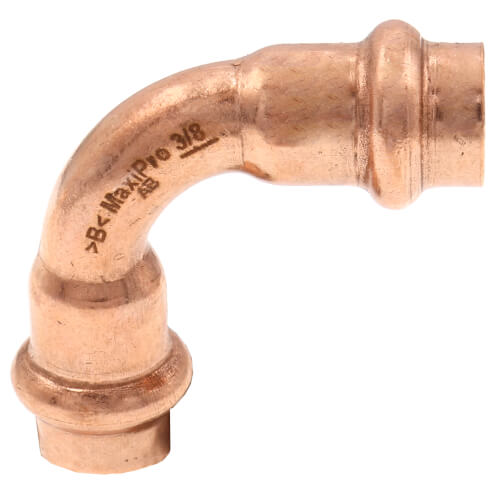

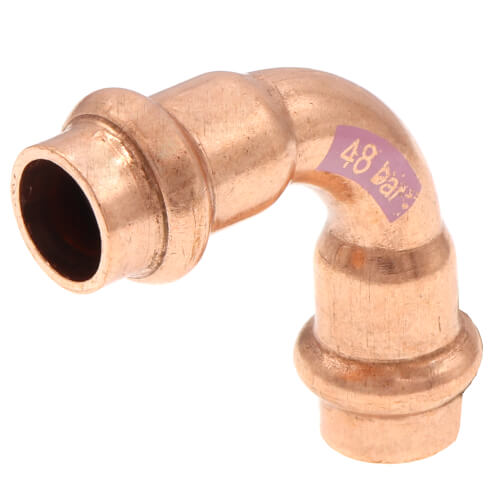

Zoomlock 870602 3/8-Inch 90-Degree Elbow

Product Description

The Zoomlock 870602 is a 90-degree elbow used in air conditioning and refrigeration systems. This press fitting is designed to create secure connections between copper tubes without the need for brazing. It utilizes crimping technology that forms a leak-proof seal, making it reliable in various applications.

• Connection type: Press fitting
• Fitting angle: 90 degrees
• Suitable for copper tubes from one-fourth inch to one and one-eighth inch

Product Highlights

The Zoomlock elbow is essential for HVACR professionals seeking efficient installation options with strong connectivity.

Product Information

Standard Information

• Brand: Zoomlock
• MPN: 870602

Technical Specifications

• Size: 3/8 inch
• Fitting type: 90-degree elbow
• Material: Copper/HNBR
• Connection type: Press
• Pressure rating: 700 psi
• Minimum temperature: -40 degrees Fahrenheit
• Maximum temperature: 248 degrees Fahrenheit
• Approvals: UL Recognized
• Nominal size: 3/8 inches
• Temperature rating: -40 to 250 degrees Fahrenheit
• Suitable for use with: 1/4 to 1-1/8 inches pipes
• Dimension A: 1.30 inches / 33.0 mm
• Dimension B: 0.59 inches / 15.0 mm
• Country of origin: USA
• Composition: Copper
• Tier: ZoomLock
