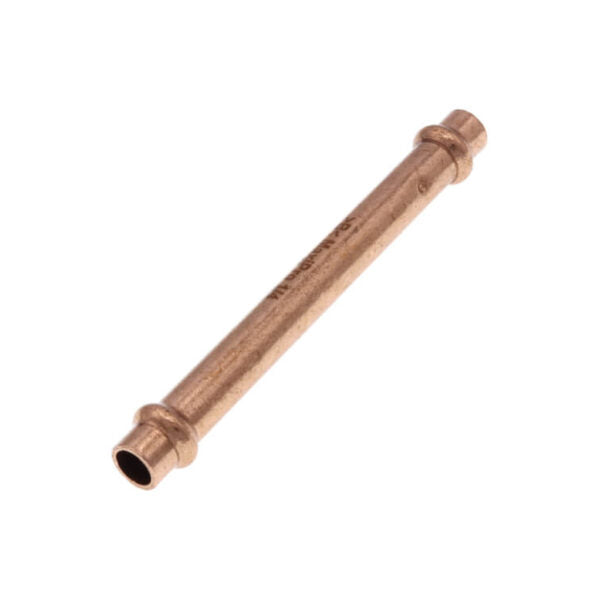

ZOOMLOCK 870550 MAX Slip Coupling 1/4 (5 Per Bag)

Product Description

The ZOOMLOCK 870550 MAX slip coupling is suited for air conditioning and refrigeration tasks. This coupling excels in creating secure, leak-free connections for refrigerant lines. It operates effectively under pressures of up to seven hundred psi.

• Eliminates the need for gas and flames.
• Provides flexibility with no nitrogen-purge requirement.
• Safer work conditions, minimizing fire hazards.

Product Highlights

Efficiently connects refrigerant lines without requiring open flames or gas.

Product Information

Standard Information

• Brand: ZOOMLOCK
• MPN: 870550

Technical Specifications

• Size: 1/4 inches
• Material: Copper
• Min Temp: -40 F
• Max Temp: 284 F
• Outlet Connection Size: 1/4 inches
• Inlet Connection Size: 1/4 inches
• Fitting Type: Slip Coupling
• Minimum Burst Pressure: 2100 psi
• Maximum Operating Pressure: 700 psi
• O-Ring Material: HNBR
• Refrigerant Types: 32, 125, 134A, 290, 404A, 407A, 407C, 407F, 407H, 410A, 417A, 421A, 422B, 422D, 427A, 438A, 444A, 447A, 447B, 448A, 449A, 450A, 452A, 452B, 452C, 454A, 454B, 454C, 457A, 459A, 507A, 513B, 600A, 718, 1234yf, 1234ze, HYCOOL 20
• ASME: ASME B31.5
• ASTM Standards: ASTM B-280, ASTM B-743, ASTM B-88, ASTM G-85
• Length: 3.54 inches
• Domestic Origin: Yes
• UL Listed: UL 109/UL 1963
• Connection Type: Press-to-Connect
• Temperature Rating: -40 to 284 F
