ZOOMLOCK 502160 3/8 Ball Valve

Product Description

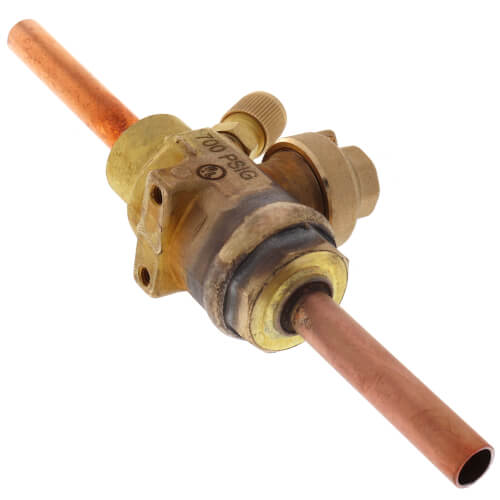

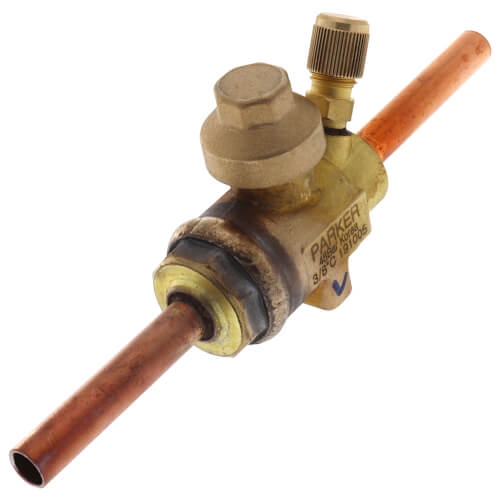

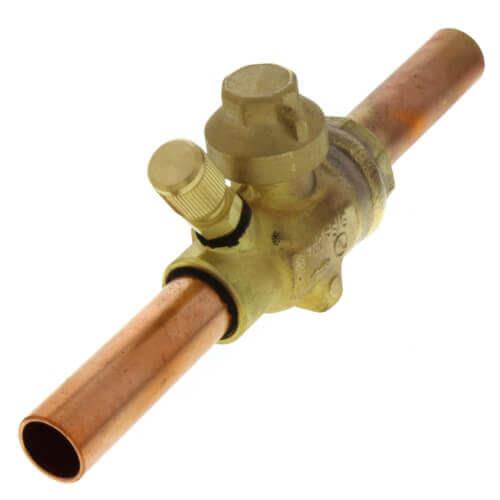

The ZOOMLOCK 502160 is a 3/8 ball valve with a forged brass body and extended copper ends. It features an internal relief port design for reliable shut-off in both directions. This valve has dual Teflon seals to prevent any leakage and is designed for bi-directional flow, allowing for flexible installation.

• Forged brass body construction
• Bi-directional design allows installation in any position
• Suitable for refrigeration service within a temperature range of -40F to +325F

Product Highlights

This valve is essential for refrigeration applications, ensuring high performance and reliability.

Product Information

Standard Information

• Manufacturer Part Number: 502160
• Connection Type: ODM

Technical Specifications

• Product Type: Ball Valve
• Size: 3/8
• Port Size: 0.50
• Max. Working Pressure: 700 psi
• Design Working Pressure: 700 psig (49 bar)
• Features: Bi-Directional
• Flow Capacity (Cv): 4.3
• Full Refrigeration Service Temperature Range: -40F to +325F
