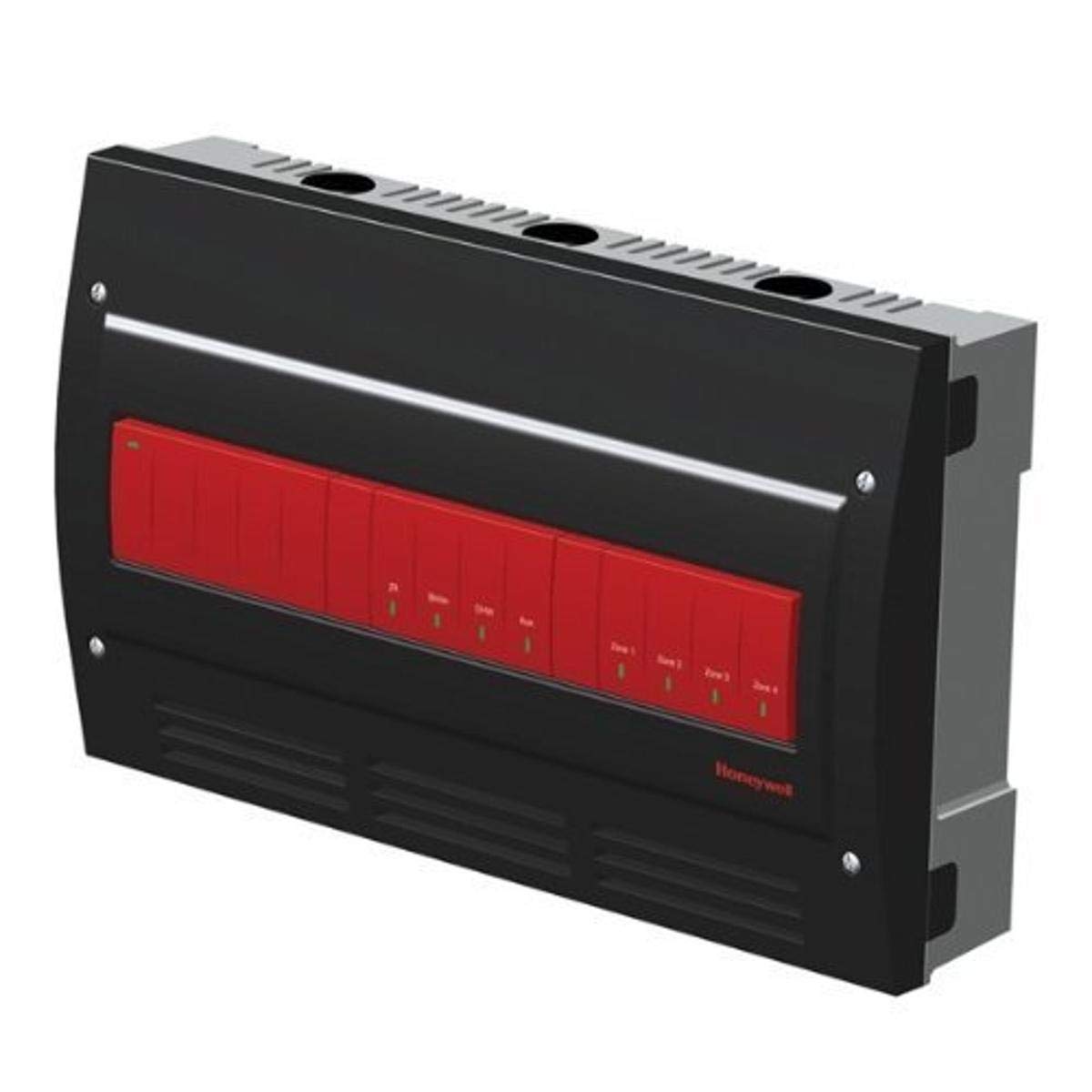

Honeywell AQ25744B Aquatrol Zoning Control Used for Hydronic Zoning Systems

Product Description

Honeywell AQ25744B Aquatrol Zoning Control is a high-performance device engineered for hydronic zoning systems. It efficiently manages zone valves with a robust end switch mechanism.

• Includes an auto-test function for zone operational verification at startup
• LED indicators provide clear, visual diagnostics of zone operations
• Capability to operate different zone equipment through adjacent zoning panels

Product Highlights

The Honeywell AQ25744B enables switching from zone valves to pumps using the same zoning module, enhancing system flexibility. This zoning control unit is ideal for creating optimized environmental conditions in residential or commercial settings.

Product Information

Standard Information

• Brand: Honeywell
• MPN: AQ25744B

Technical Specifications

• Number of Zones: 4
• Boiler Output: 120/250 VAC, 5 A, 1/3 hp
• Control Range: 32 - 130 degrees Fahrenheit
• User Interface: DIP Switch
• Electrical Connection: Wire Clamp Screw Terminal
• Dimensions: 8 inches H x 9-1/2 inches W x 3-3/8 inches D
• Suitable For Use With: AQ2000 Series Boiler Control Panels
