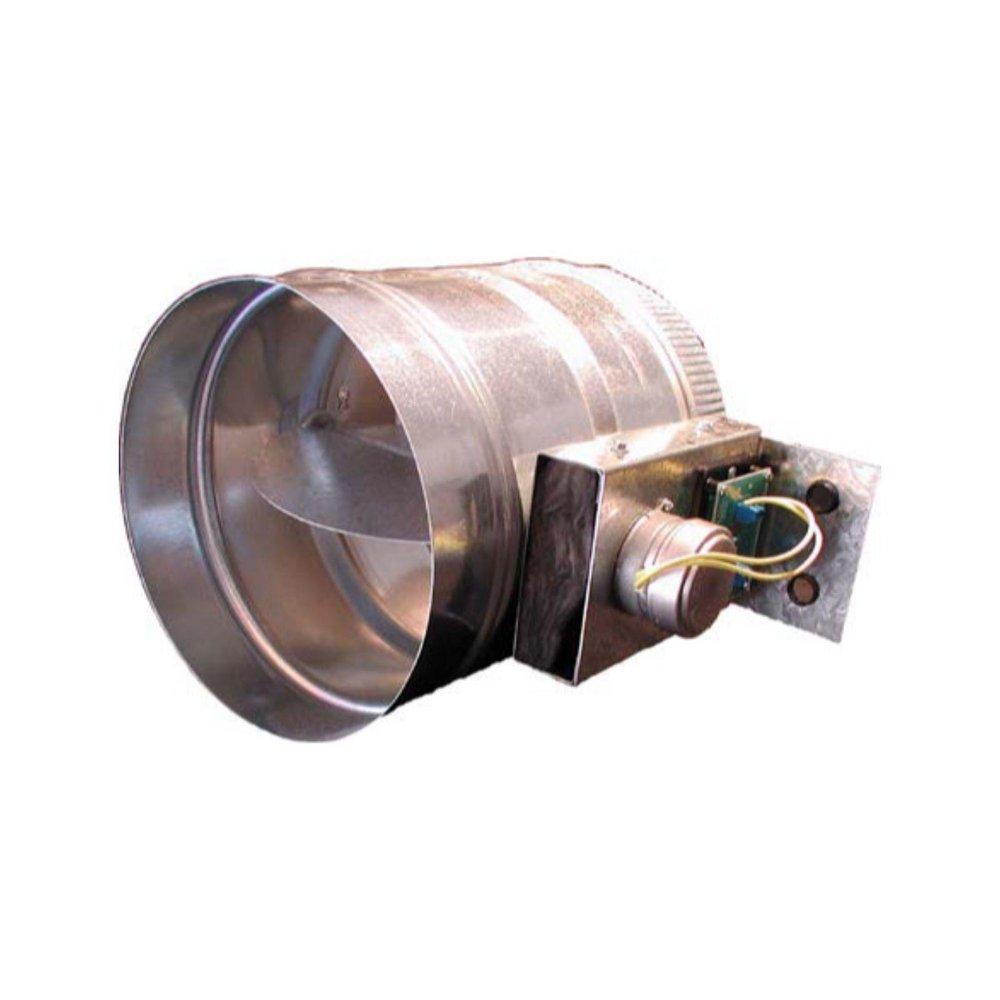

Zonex TR12 TR Series Round Zone Damper, Low Pressure, 12 Diameter Replacement MPN

Product Description

The Zonex TR12 is a round zone damper designed for low pressure systems. With a diameter of twelve inches, it is suitable for various HVAC applications. This damper features a two position, spring open, power closed design.

• Constructed from durable steel for longevity.
• Equipped with a full stall motor for reliable operation.
• Designed for easy installation with a crimped trailing end.

Product Highlights

The TR12 ensures effective airflow management without the need for complex adjustments or gaskets.

Product Information

Standard Information

• Manufacturer: Zonex
• MPN: TR12

Technical Specifications

• Actuator: Synchron
• Diameter: 12 inches
• Shell Material: 22-24 gauge cold rolled galvanized steel
• Length: 14 inches
• Width: 16.25 inches
• Stroke: 90 degrees
• Input Voltage: 24 vac
• Operating Temperature: -10°F to 150°F
• Pressure Drop: < 0.09 W.C. @ rated CFM
• Operating Humidity: 10-95% non-condensing
• Power Consumption: 12 VA maximum
