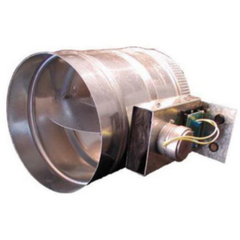

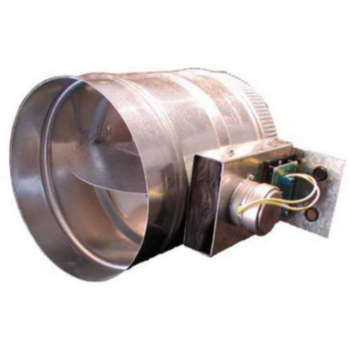

Zonex TR12 TR Series Round Zone Damper Low Pressure 12 Diameter

Product Description

The Zonex TR12 is a 12-inch diameter low pressure round zone damper designed for HVAC applications. This damper is vital for regulating airflow efficiently in HVAC zoning systems. The TR series dampers feature a robust construction suited for installation in varied conditions.

• Two-position, spring open, power closed design
• Constructed from 24 and 22 gauge steel for durability
• Easy installation with crimped end design

Product Highlights

These dampers are equipped for efficient operation and maintenance, ensuring precise airflow management in HVAC systems.

Product Information

Standard Information

• Brand: Zonex
• Manufacturer: Zonex

Technical Specifications

• Input: 24 vac
• Diameter: 12
• Length: 14 inches
• Width: 16-1/4 inches
• Stroke: 90 degrees
• Actuator: Synchron
• Power Consumption: 12 VA maximum
• Operating Temperature: -10°F to 150°F
• Operating Humidity: 10-95% non-condensing
• Pressure Drop: < .09 W.C. @ rated CFM
• Shell Material: 22-24 gauge cold rolled galvanized steel
• Shaft: 1/2 aluminum, round
• Storage Temperature: -10°F to 150°F
• Communications: 18/5 AWG daisy chain
