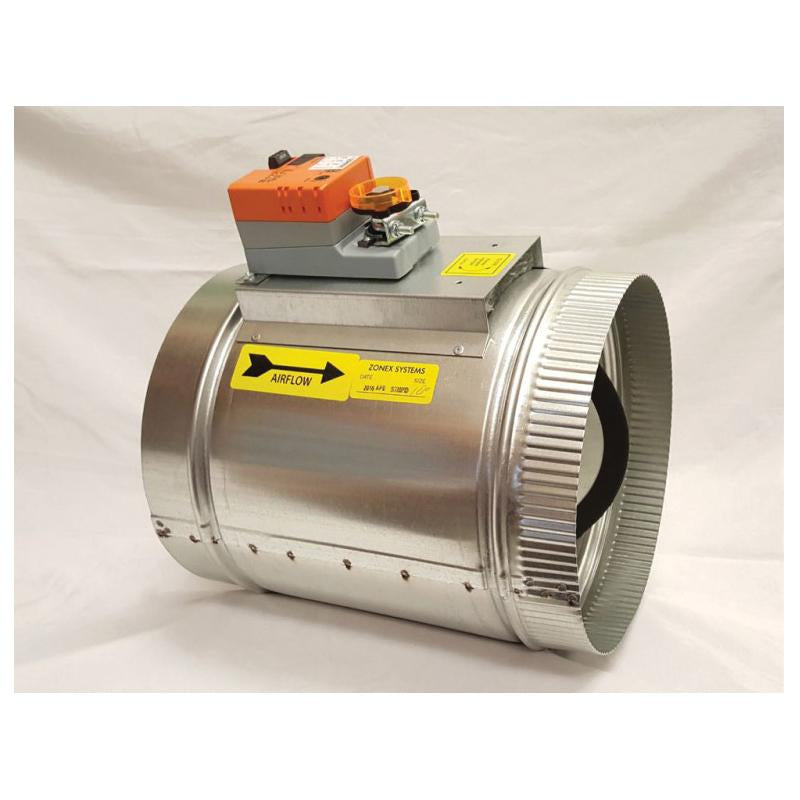

ZONEX SYSTEMS STMPD18 Medium Pressure Modulating Supply Damper

Product Description

The ZONEX SYSTEMS STMPD18 is a medium pressure air damper designed for power open and power close operations. It measures eighteen inches in diameter and is made from twenty-gauge steel, ensuring durability for various applications. This air damper is designed to modulate supply air based on pressure, making it suitable for heating and cooling systems. The construction includes rolled beads at the ends for added strength, while a crimped trailing end allows for straightforward installation. An elliptical blade enables efficient linear air volume delivery, enhancing airflow control.

• Features an elliptical blade for linear air volume delivery
• Equipped with a 24 VAC full stall motor
• Can be wired in parallel for additional zone air flow capacity

Product Highlights

This air damper is user-friendly and functional, making it ideal for HVAC professionals who require reliable performance.

Product Information

Standard Information

• Brand: ZONEX SYSTEMS
• MPN: STMPD18

Technical Specifications

• Diameter: 18 inches
• Voltage Rating: 24 V
• Power: 1.5 W
• Humidity Rating: 5 to 95% Non-Condensing
• Pressure Drop: <0.04 in-WC
• Material: Steel
• Shape: Round
• Actuator: Power Open/Power Close
• Stroke: 60 degrees
• Max Static Pressure: 1.75
• CFM: 0-2000
