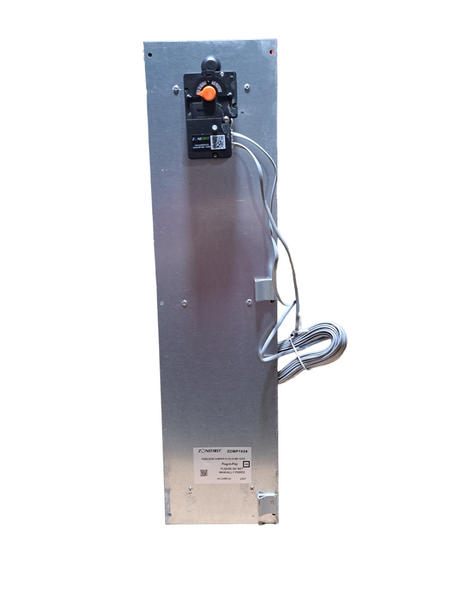

ZONEFIRST ZDBP1024 Zone Damper With MP12M Plug-In Motor 10 x 24 in

Product Description

The ZONEFIRST ZDBP1024 zone damper is designed with durable extruded aluminum parallel blades and features a power open/power close plug-in motor. This product is shipped fully complete, ready for installation in any properly sized duct and can be mounted in any position. The damper is capable of handling duct pressures up to two inches of water column and operates using a twelve VDC, zero point one A motor.

• Shipped in the open position for easy installation
• Tested for over one million cycles to ensure longevity
• Can daisy chain up to ten dampers for each zone

Product Highlights

This zone damper is ideal for HVAC professionals needing reliable and efficient airflow control in residential and commercial settings.

Product Information

Standard Information

• Model: ZDBP
• Shape: Rectangular

Technical Specifications

• Blade Type: Parallel
• Electrical Connection: RJ11 Modular
• Humidity Rating: 5 to 95% RH Non-Condensing
• Torque Rating: 7 in-lb
• Material: Extruded Aluminum
• Motor Type: Power Open, Power Closed
• Motor Specifications: 12 VDC, 0.1 A
• Pressure Rating: 2 in-WC Differential
• Temperature Rating: 0 to 150 deg F Operating, -13 to 150 deg F Storage
• Size: 10 x 24 inches
• Timing: 5 seconds
• Amperage Rating: 0.1 A
