Zonefirst ZDBP0824 Plug-In-Play Bottom Mount Zone Damper 12 Vdc (08x24) ZDBM

Product Description

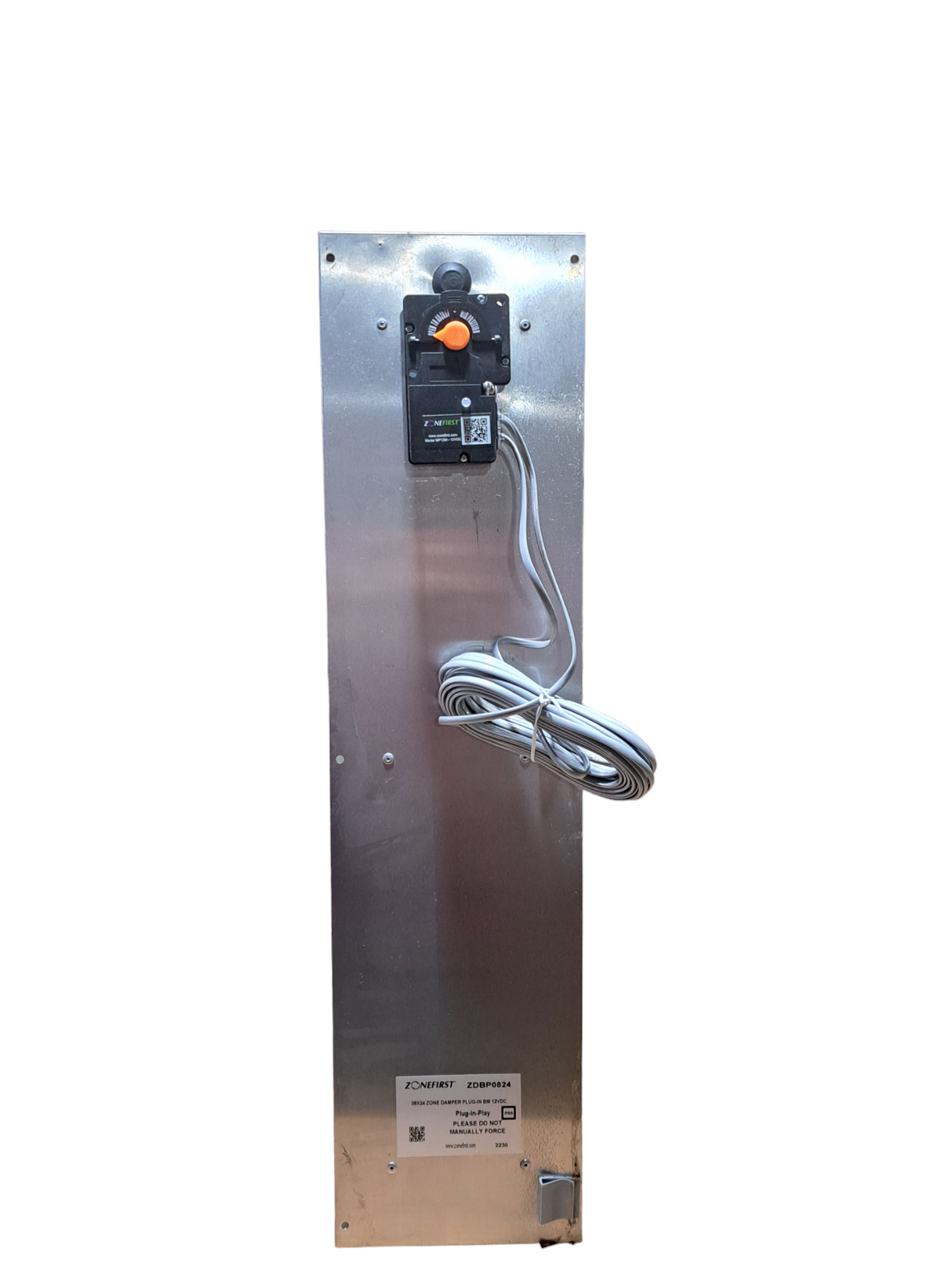

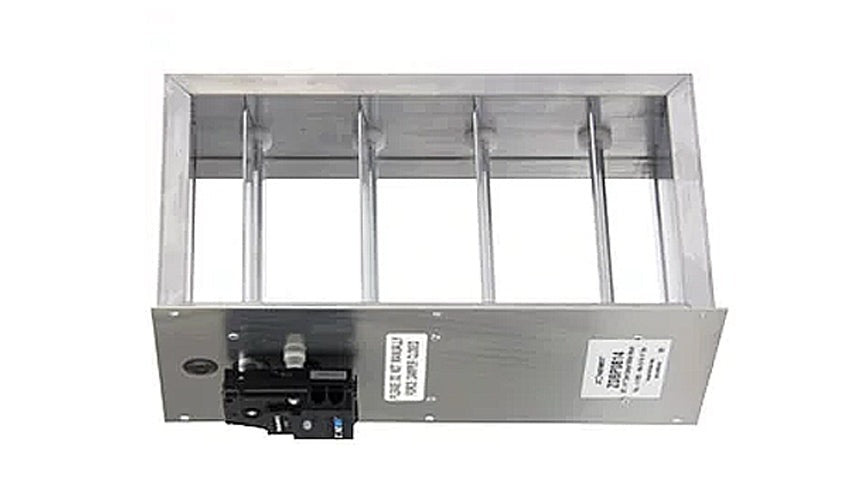

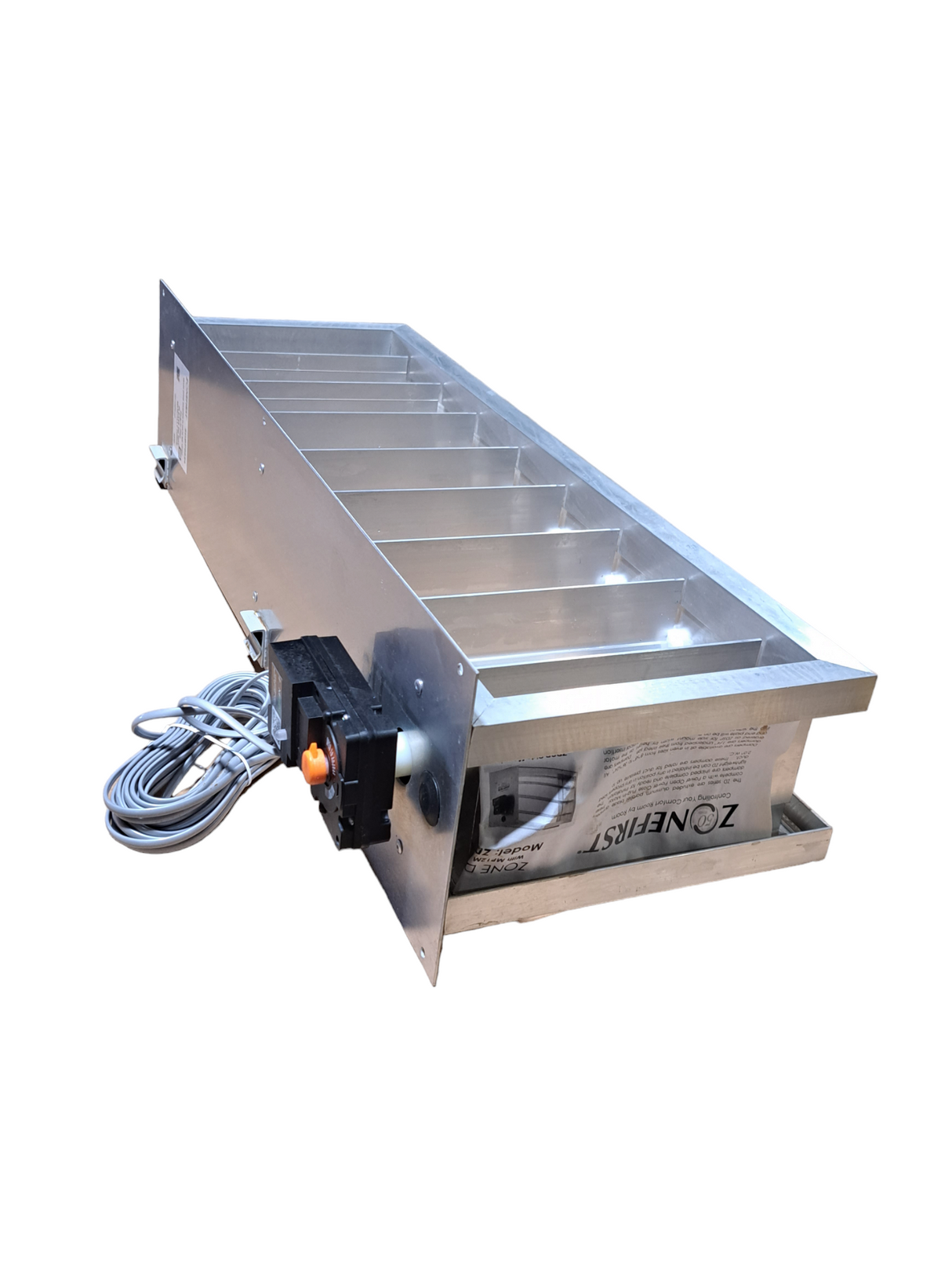

The ZONEFIRST ZDBP0824 is a plug-in, bottom-mount zone damper with a 12 Vdc power open/close actuator designed for use with plug-in panels. It features an extruded aluminum frame and parallel 3-inch blades that pivot on self-lubricating bushings for smooth, quiet operation. The motor and end plate are located on the longer (width) dimension, and the unit includes a 25-foot modular cord and supports daisy-chaining up to 10 dampers per zone.

• Extruded aluminum frame with parallel 3-inch blades and self-lubricating blade bushings
• Plug-in 12 Vdc open/close actuator; 25-foot modular cord included; supports daisy-chaining up to 10 dampers per zone
• Bottom-mount configuration with motor located on the width (longer) dimension; available in sizes from 8x10 to 24x36

Product Highlights

Bottom-mount plug-in zone damper, 12 Vdc actuator, 25-foot cord, daisy-chain up to 10 units; recommend ZDBM for sizes over 24x24.

Product Information

Standard Information

• Brand: ZONEFIRST
• Manufacturer Part Number: ZDBP0824
• Country of Origin: United States

Technical Specifications

• Brand: ZONEFIRST
• MPN: ZDBP0824
• Model: ZDBP
• Product type: Bottom-mount plug-in zone damper
• Mounting Type: Bottom mount (motor and end plate on width/longer dimension)
• Size: 8 x 24 inches
• Available Sizes: 8 x 10 to 24 x 36 inches (custom sizes available)
• Input Voltage: 12 VDC
• Actuator Type: Plug-in open/close actuator
• Frame Material: Extruded aluminum
• Blade Type: Parallel blades, 3 inches
• Blade Pivot: Self-lubricating bushing
• Cord: 25 foot modular cord included
• Daisy-Chaining: Up to 10 dampers per zone
• Compatibility: For use with plug-in panels only
• Motor Location: Located on width (longer) dimension
• Recommendation: For dampers larger than 24 x 24 inches use MDM motor (ZDBM)
• Country of Origin: United States
