Zonefirst ZDBP0814 Zone Damper With MP12M Plug-In Motor 8 x 14

Product Description

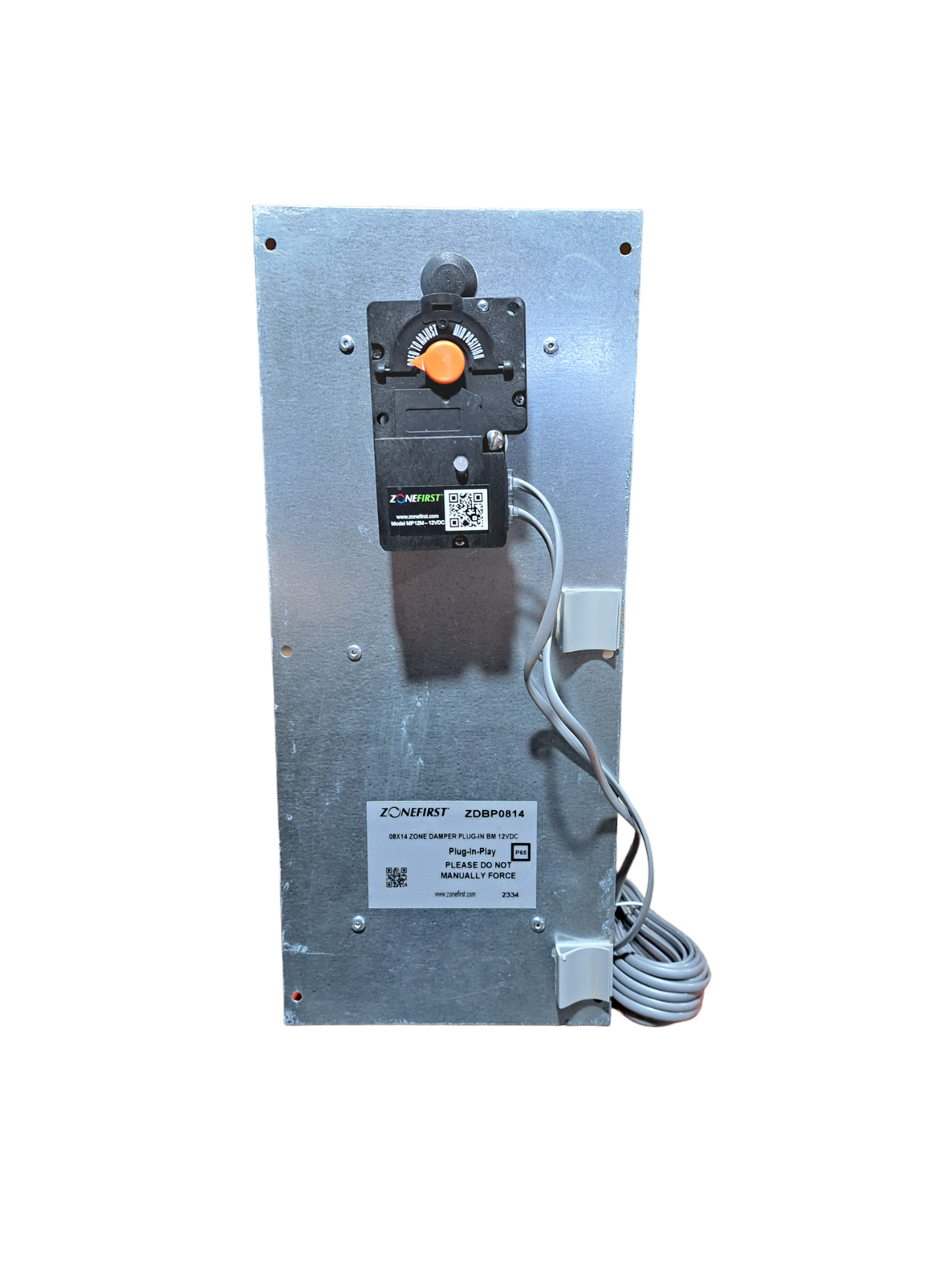

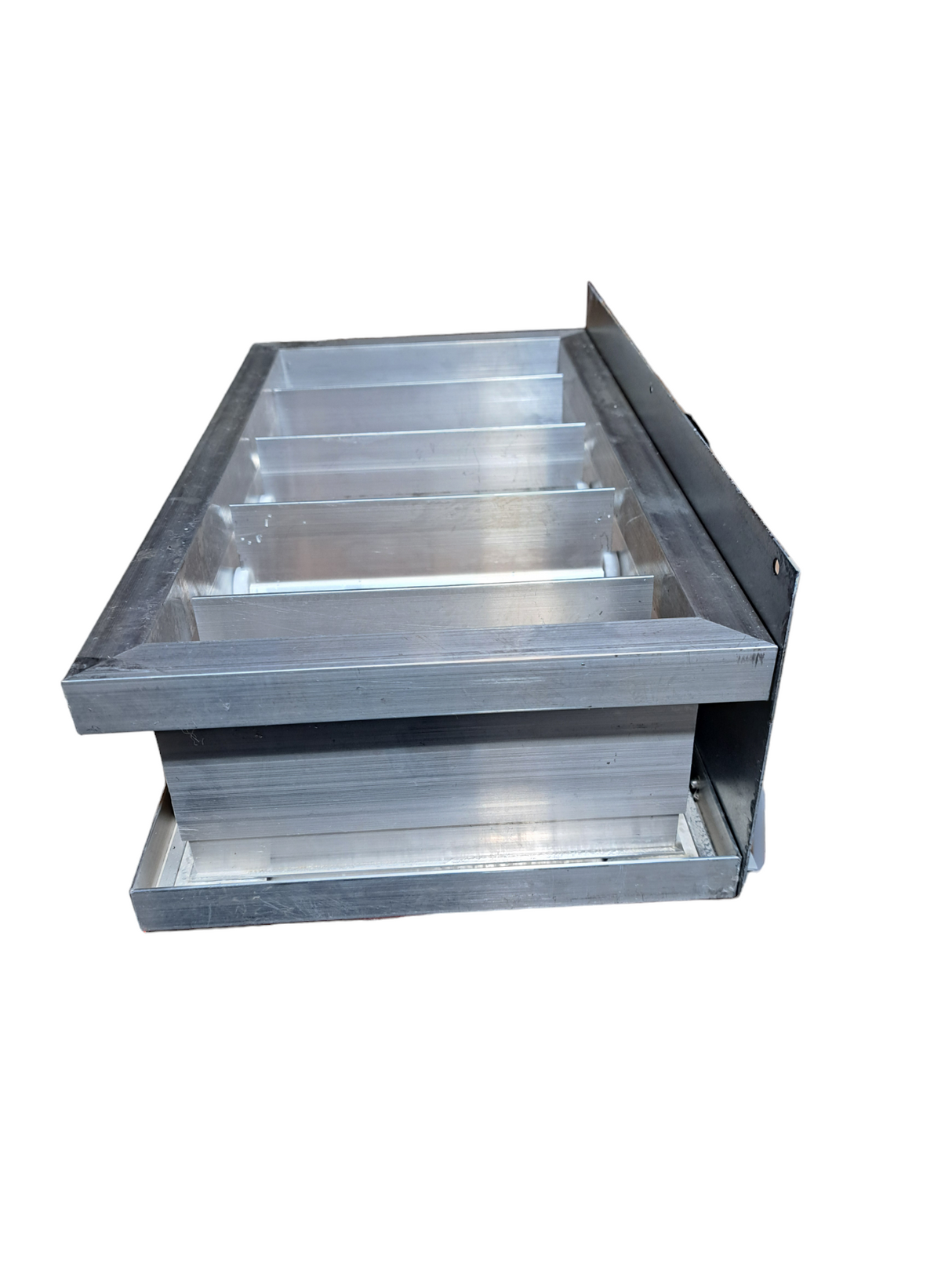

The Zonefirst ZDBP0814 zone damper features extruded aluminum parallel blades and a power open/power close plug-in motor. It is designed for easy installation within properly sized ducts and withstands duct pressures up to two inches WC. The MP12M motor is tested to over 1000000 cycles, ensuring durability and long life. The ZDBP model motor and end plate are positioned on the longer dimension for easy insertion into either the bottom or top of the duct.

This damper is shipped in the open position for immediate installation. It operates with a twelve VDC damper motor (MP12M) and has a two-color LED indicator to show damper position.

• Constructed with durable extruded aluminum
• Standard humidity rating from five to ninety-five percent RH non-condensing
• Ideal for installation in residential or commercial HVAC systems

Product Highlights

The ZDBP0814 is known for its reliable performance in controlling airflow in duct systems.

Product Information

Standard Information

• Model: ZDBP
• Material: Extruded Aluminum

Technical Specifications

• Blade Type: Parallel
• Electrical Connection: RJ11 Modular
• Timing Range: Five seconds powered open/closed
• Torque Rating: Seven in-lb
• Finish: Mill
• Pressure Rating: Two in-WC
• Temperature Rating: Zero to one hundred fifty degrees Fahrenheit operating, negative thirteen to one hundred fifty degrees Fahrenheit storage
• UPC: 68806496777
