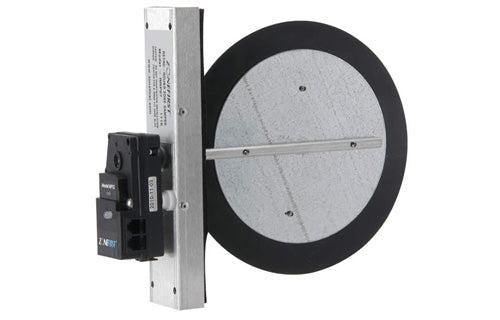

Zonefirst RRP05 5 inches Plug-In Play Damper

Product Description

The ZONEFIRST RRP05 Retro-Round Insertable Damper makes it easy to install dampers into any rigid metal duct work. The RRP uses a DC motor and wires using modular plug-in cords. It features direct driver linkage and an aluminum end plate and shaft with galvanized blade. Designed for branch duct to control the upstairs and downstairs zone.

• Daisy chain up to 10 damper on each zone
• Direct driver linkage
• Maximum 2 in WC duct pressure
• For branch duct to control the upstairs and downstairs zone

Product Highlights

The Zonefirst RRP05 is a 5 inch diameter round damper with a 12 VDC motor, ideal for zoning applications.

Product Information

Standard Information

• Brand: ZONEFIRST
• Manufacturer Part Number: RRP05
• Country of Origin: Domestic

Technical Specifications

• Brand: Zonefirst
• Voltage Rating: 12 VDC
• Electrical Connections: RJ11 25 ft Modular Cord
• Size: 5 in Dia
• Motor Type: MP12 Plug-In
• Timing: 5 sec Powered Open-Closed
• Domestic/Import: Domestic
• Series: RRP
• Type: Plug and Play
• Material: Aluminum
• Shape: Round
• Temperature Rating: 0 to 150 deg F
• Amperage Rating: 0.07 A
