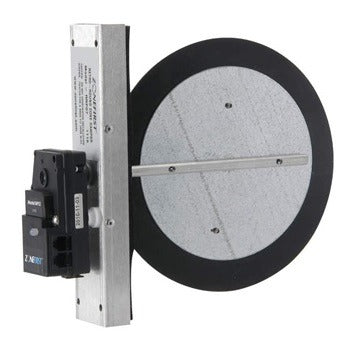

Zonefirst RRP-7 Retro-Round Insertable Damper 12 VAC/VDC (7 inches)

Product Description

The ZoneFirst RRP-7 is a 7-inch retro-round insertable damper with a plug-in damper actuator that operates on 12 VAC/VDC for zoning and retrofit round duct applications. The unit includes an MP12 motor and a 25' modular cord with RJ11 jacks and can be daisy-chained up to 10 dampers per zone. Nominal powered open/close time is 5 seconds; operating range is 0 F to 150 F with 5% to 95% non-condensing humidity.

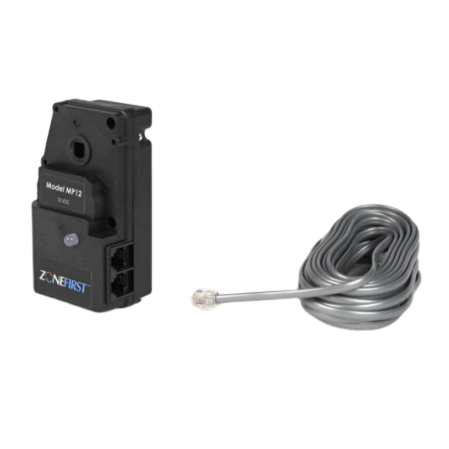

• Insertable retro-round damper with plug-in MP12 actuator and 25' modular cord (four-conductor with RJ11 jacks)
• Daisy-chain capable: up to 10 dampers per zone; nominal powered open/close time 5 seconds
• Construction: aluminum end plate and shaft, galvanized blade, Duran bushings; maximum duct pressure 2.0 inch W.C., torque 4.69 in./lbs

Product Highlights

7-inch retrofit/insertable damper for round ducts with plug-in actuator, daisy-chainable to 10 units, includes MP12 motor and 25' RJ11 modular cord.

Product Information

Standard Information

• Brand: ZONEFIRST
• Manufacturer Part Number: RRP-7
