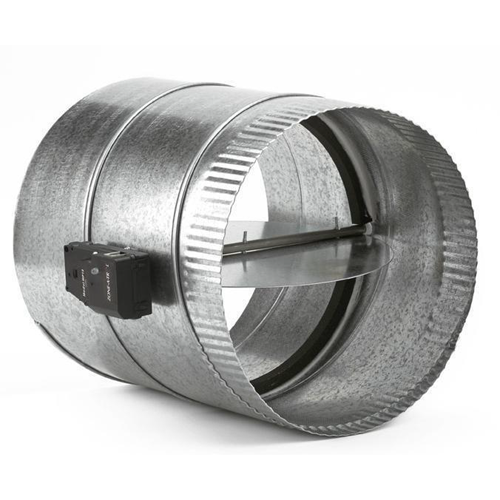

Zonefirst RDP16 Round Damper Plug In 12 Vdc (16 inches)

Product Description

The ZoneFirst RDP16 is a round damper plug-in designed to operate at twelve volts DC. This model measures sixteen inches and is suitable as a replacement part for existing systems. It is constructed from galvanized steel and features a single blade design with a durable motor actuator. Installation is straightforward, and the damper can be positioned in various orientations within a properly sized duct. This product is compatible with duct systems rated for pressure less than two inches water column.

• Rated for duct systems under 2 inches water column
• Durable construction from galvanized steel
• Direct drive linkage for efficient operation

Product Highlights

This damper ensures reliable airflow management in heating and cooling systems.

Product Information

Standard Information

• Manufacturer: ZoneFirst
• Brand: ZoneFirst

Technical Specifications

• Linkage: Direct Drive
• Motor Voltage: 12VDC 0.100A
• Temperature Rating: Operating from 0F to 150F
• Humidity: 5% to 95%, Non-condensing
• Damper Timing: Nominal 5 seconds for powered open-closed
• Connection: Modular RJ11 with 2 Ports
• Duct Pressure: Maximum of 2 inches water column
