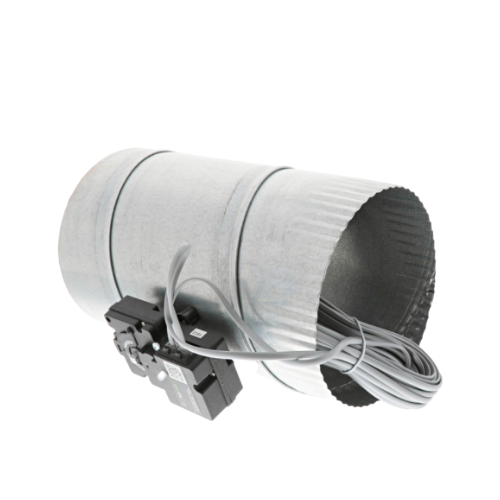

ZONEFIRST RDP06 Zone Damper With MP12M Plug-In Motor 4.69 in-lb

Product Description

The ZONEFIRST RDP06 is a zone damper made of galvanized steel. It features a single blade design and comes with a twelve VDC motor actuator. This damper is ready for installation in any position in properly sized duct systems. It is rated for duct systems that are less than two inches water column and includes an RJ11 modular connector.

• Durable galvanized steel construction
• 12 VDC motor, model MP12M, tested for over one million cycles
• Integrated two-color LED to show damper position

Product Highlights

Reliable zone control for HVAC systems with efficient installation and long service life.

Product Information

Standard Information

• Series: RDP Series
• Blade Type: Single

Technical Specifications

• Electrical Connection: RJ11 Modular Connector
• Humidity Rating: 5 to 95% Non-Condensing
• Timing Range: 5 seconds Nominal Powered Open/Closed
• Torque Rating: 4.69 in-lb
• Material: Steel
• Finish: Galvanized
• Mounting Type: Inline
• Motor Type: Power Open, Power Closed
• Shape: Round
• Pressure Rating: 2 in-WC Maximum
• Temperature Rating: 0 to 150 deg F Operating, -20 to 175 deg F Storage
• Length: 9-3/4 inches
• Linkage: Direct Drive
• Motor Voltage: 12VDC 0.100A
• Damper Timing: Nominal 5 seconds powered open-closed
• Connection: Modular RJ11 2 Ports
