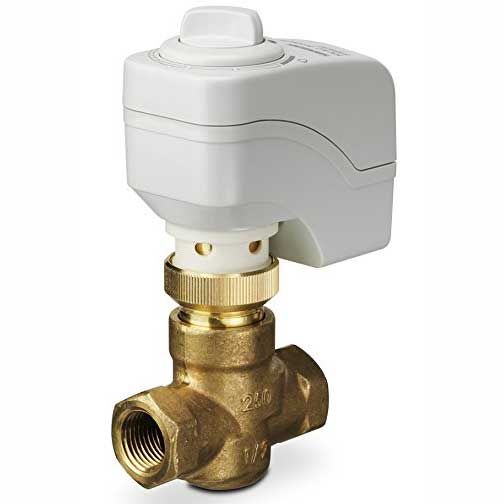

SIEMENS 254-01119 Zone Valve Assembly 24V Equal Percentage Control 1/2 Inch NPT

Product Description

The Siemens 254-01119 Zone Valve Assembly is a highly efficient solution for controlling the flow of hot or chilled water in various HVAC systems. Its robust design features a two-way, normally-open, linear flow with a bronze body and a floating actuator, suitable for use in fan coil units, convectors, and reheat coils.

• Non-spring return ensures reliable operation and durability.
• Features a brass body with chrome plated brass ball and brass stem.
• Equipped with a Fail-in-Place Electro-Mechanical Actuator for precise control.

Product Highlights

Designed for easy integration into HVAC systems, this valve assembly offers a compact size and precision engineering.

Product Information

Standard Information

• Connection Type: 1/2 Inch Female NPT.
• Control Type: Floating actuator, 24V.

Technical Specifications

• Product Type: Controller, Valve.
• Body Material: Brass, chrome-plated.
• Actuator Type: Fail-in-Place Electro-Mechanical.
• Flow Capacity: 1.0 Cv.
• Operation: 2-way, Normally Open.
• Voltage: 24V.
• Pressure Rating: ANSI 250.
• Leakage: Class IV per ANSI.
• Product Dimensions: Height 13 1/8 inches, Width 3 1/4 inches, Depth 1 1/2 inches.
