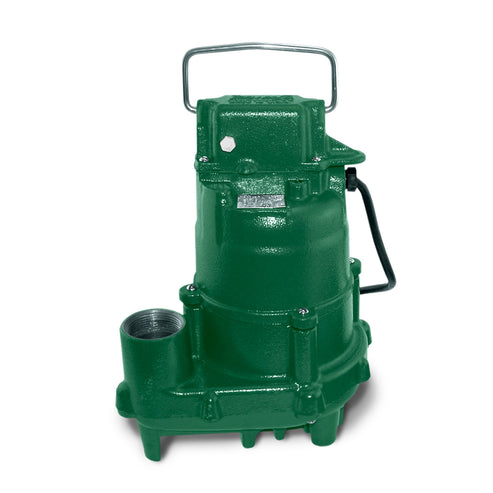

Zoeller ZOEL-373-0002 Evaporative Cooling Pump 0.4 Hp 115V

Product Description

The ZOELLER ZOEL-373-0002 is a submersible evaporative cooling pump rated at 0.4 HP and 115 volts, single phase, built for continuous-duty service in demanding wet environments. The pump features a cast iron construction with a powder-coated epoxy finish that resists corrosion and promotes motor heat dissipation. An oil-filled motor pairs with permanently lubricated upper and lower bearings to extend service life without routine maintenance. Each unit is pressure-tested, submerged, and run at the factory before shipping. This pump is suited for licensed plumbers, irrigation contractors, and water system technicians working in evaporative cooling, dewatering, or groundwater transfer applications.

The ZOEL-373-0002 is designed for continuous-duty use in poultry facilities, residential settings, and light commercial dewatering installations. It is also rated for transferring groundwater or effluent. The pump ships with a 20-foot power cord, making it ready for direct installation into sumps, pits, or tanks without additional cord extension in most standard-depth applications. Nonautomatic operation means the pump runs when powered and does not include a built-in float switch, giving installers full control over switching logic through an external controller or relay.

Key Features

• 0.4 HP oil-filled motor rated for continuous-duty operation
• Cast iron housing with powder-coated epoxy finish for corrosion resistance
• Permanently lubricated upper and lower bearings for extended service life
• 115V single-phase power with 20-foot cord included
• Nonautomatic configuration for use with external float switches or controllers
• Factory pressure-tested and run-tested before shipment

Compatibility

Designed as an OEM-style replacement or direct-use submersible pump for residential and light commercial evaporative cooling, dewatering, and groundwater transfer systems requiring a 0.4 HP, 115V nonautomatic pump.

Installation Notes

Installation should be performed by a licensed plumber or qualified water systems technician in accordance with applicable local codes. Disconnect and lock out power before lowering or retrieving the pump from the sump or pit. Because this unit is nonautomatic, connect it to an appropriate external float switch, relay, or control panel to prevent dry-run conditions. Verify that the discharge piping and fittings are rated for the pump flow and pressure before commissioning.

Technical Specifications

• Motor Output: 0.4 HP
• Voltage: 115 volts
• Phase: 1-phase
• Cord Length: 20 feet
• Operation Type: Nonautomatic
• Motor Type: Oil-filled
• Housing Material: Cast iron with powder-coated epoxy finish
• Duty Rating: Continuous

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: ZOEL-373-0002
