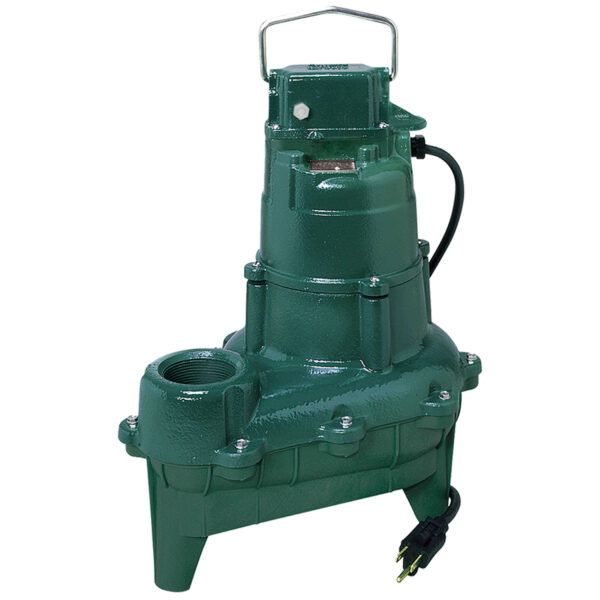

Zoeller ZOEL-264-0021 Sewage Pump 0.4 Hp 230V Nonautomatic

Product Description

The ZOELLER ZOEL-264-0021 is a 0.4 HP nonautomatic submersible sewage pump designed to remove raw sewage and effluent in residential sewage ejector and septic system applications. Rated at 230 volts, single phase, and supplied with a 25-foot cord, this pump requires an external piggyback float switch or control panel to set on and off points in the field. That setup makes it well suited for deep sump pits and pump tanks where field-adjustable switching is preferred. The motor housing and pump housing are cast iron construction. The identification tag, handle, and hardware are stainless steel. Licensed plumbers and sewage system contractors are the typical installers.

The ZOEL-264-0021 is intended for residential sewage ejector and septic system installations where raw sewage or effluent must be pumped from a below-grade collection pit. Because the pump is nonautomatic, the installer selects and sets the float switch or control panel independently, allowing precise control of the operating range within the pit or tank. This flexibility is particularly useful in applications with non-standard sump depths or systems requiring precise level management.

Key Features

• 0.4 HP motor rated for 230V single-phase operation
• Nonautomatic design requires a piggyback float switch or control panel — allows field-adjustable on/off points
• Cast iron motor housing and pump housing for durability in sewage environments
• Stainless steel identification tag, handle, and hardware resist corrosion
• 25-foot power cord included
• Factory-tested by submersion against published performance curve prior to shipment

Compatibility

Designed as an OEM-style sewage pump for residential sewage ejector and septic system applications requiring a nonautomatic submersible pump with external switching control.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Disconnect and lock out all electrical power before lowering the pump into or removing it from the pit. Because this pump is nonautomatic, a compatible piggyback float switch or control panel must be installed and configured before commissioning. Never operate this pump dry or in fluids outside its rated application.

Technical Specifications

• Motor HP: 0.4 HP
• Voltage: 230 volts
• Phase: 1-phase
• Cord Length: 25 feet
• Operation Type: Nonautomatic
• Motor Housing Material: Cast iron
• Pump Housing Material: Cast iron
• Hardware Material: Stainless steel
• Application: Residential sewage ejector and septic systems

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: ZOEL-264-0021
