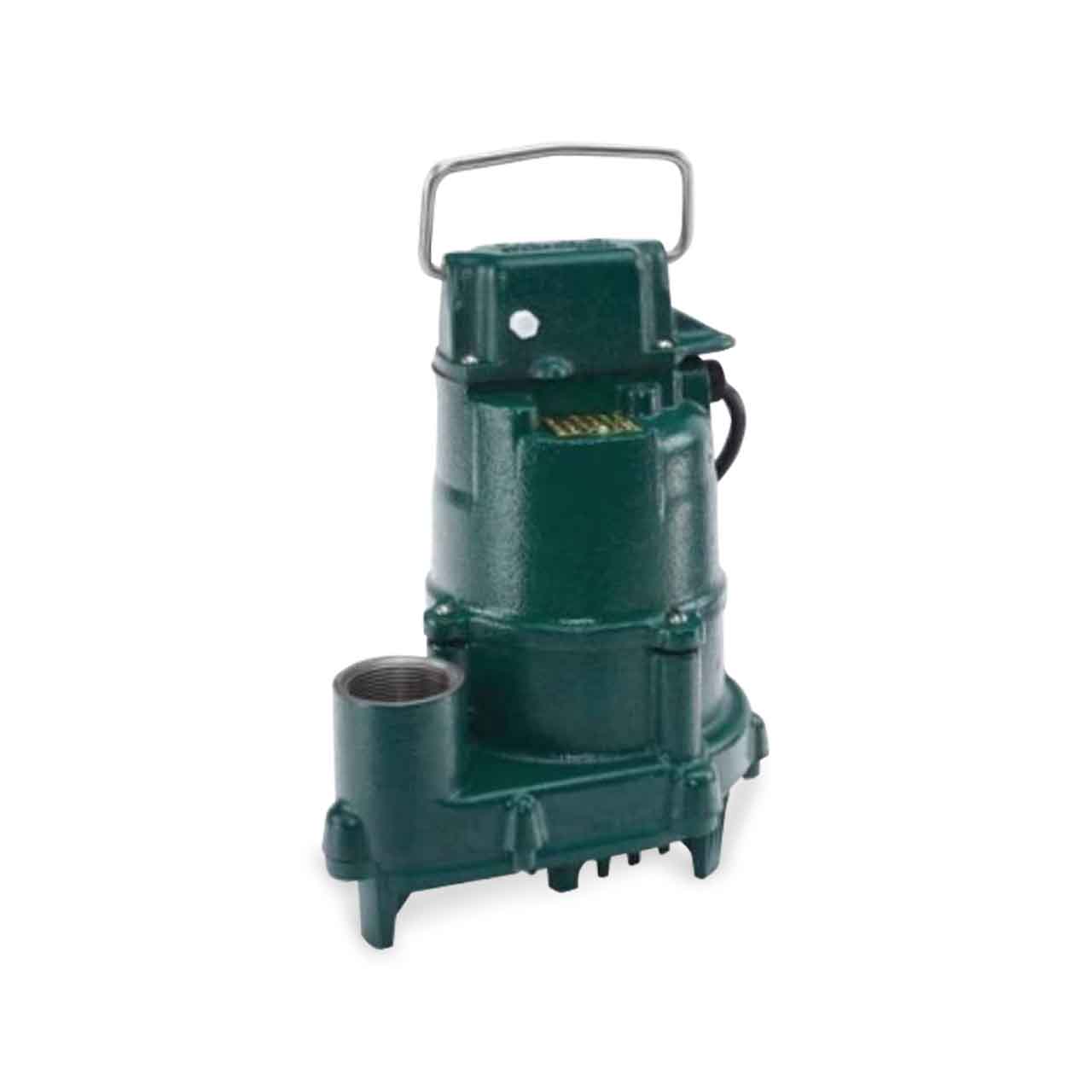

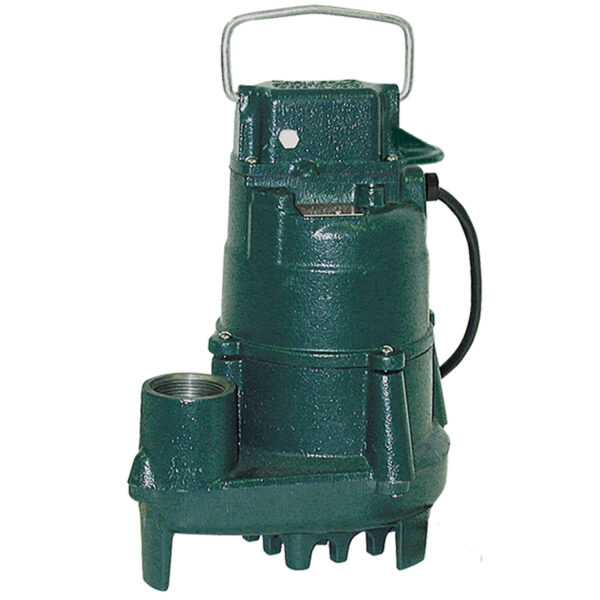

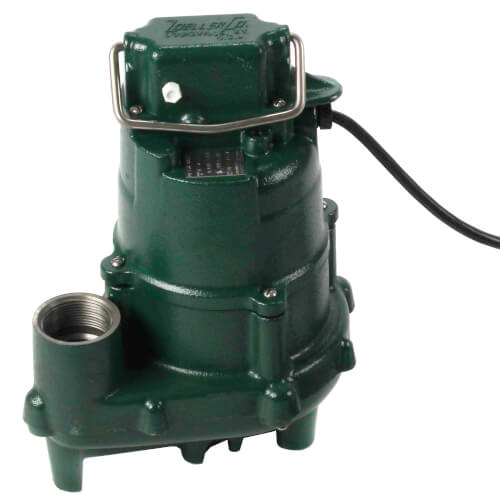

Zoeller 152-0002 Model N152 High Head Effluent Pump 0.4 HP with 20 feet Cord

Product Description

The Zoeller 152-0002 Model N152 is a high head submersible pump designed for residential or light commercial dewatering, and can transfer groundwater or effluent. These cast iron pumps are suitable for septic systems, low pressure pipe (LPP), and enhanced flow STEP system applications. Each pump is 100% pressure-tested for quality and reliability.

• Durable cast iron construction with powder coated epoxy finish for corrosion resistance.
• Non-clogging engineered thermoplastic vortex impeller design.
• Includes a 20 ft UL listed power cord with molded 3-wire plug and a 1-1/2" x 2" PVC adapter fitting.

Product Highlights

The Zoeller 152-0002 effluent pump is ideal for use in septic systems, low pressure pipe (LPP), and enhanced flow STEP system applications.

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 152-0002
• Country of Origin: United States

Technical Specifications

• Material: Cast Iron
• Item Model Number: 152-0002
• Motor: 3450 RPM, oil filled, hermetically sealed, automatic reset thermal overload protected
• Seals: Carbon/Ceramic
• Discharge: 1-1/2" NPT vertical discharge
• Solids: Passes 3/4" spherical solids
• Power Cord: 20 ft, UL listed power cord with molded 3-wire plug
• Temperature: Operates at temperatures to 130° F in effluent applications
• Adapter Fitting: Includes a 1-1/2" x 2" PVC adapter fitting
• Horse Power: 0.4
• Voltage: 115V
• Amperage: 8.5
• RPM: 3450
• Hertz: 60
• Phase: 1
• Cord Length: 20'
• Cord Type: UL Listed, 3-Wire Neoprene Cord & Plug
• Flow at 5 FT Head: 69 GPM
• Shutoff Head (ft.): 38'
• Manufacturer Name: Zoeller
• Application: Light Commercial Dewatering, STEP or Onsite
• Discharge Head: 44 Foot
• Discharge Size: 1-1/2 Inch
• End Connection: Threaded
• Float Type: No Switch
• Flow Rate: 77 GPM
• Housing Material: Cast Iron
• Impeller Design: Non-Clogging Vortex
• Impeller Material: Thermoplastic
• Inclusions/Features: Upper Sleeve and Lower Ball Bearing, Stainless Steel Hardware, Neoprene Square Ring and Gasket, Plastic or Cast Iron Base, Cast Iron Motor Housing, Cast Iron Cap, Stainless Steel (Lifting Handle/Bolt), 1-1/2 Inch x 2 Inch PVC Adapter Fitting
• Input Supply Rating: 115 Volt AC at 60 Hertz 1-Phase 3 to 10.5 Amp
• Motor Type: Class B Oil-Filled Hermetically Sealed Permanent Split Capacitor
• Overall Dimensions: 10-3/32 Inch Length x 7-3/4 Inch Width x 12-1/8 Inch Height
• Power Rating: 0.4 HP
• Product Sub-Type: Effluent Pump
• Product Type: Pump and Accessories
• Shaft Material: AISI 1215 Steel
• Shaft Seal Details: Carbon and Ceramic Mechanic Seal
• Solid Size: 3/4 Inch
• Speed Rating: 3450 RPM
• Temperature Rating: 130 Deg F
• Type: Single Seal, Non-Auto Mode, Submersible
• VOLTAGE: 1ø, 115V, 60Hz
• AMP DRAW (full load): 8.5
• MAXIMUM HEAD: 38'
• MAXIMUM CAPACITY: 68 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 1-1/2" NPT
• MAXIMUM SOLIDS HANDLING: 3/4" Spherical Solid
• IMPELLER TYPE: Engineered Thermoplastic, Non-Clogging Vortex
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
• Amperage Rating: 8.5 A
• Connection Size: 1-1/2 in NPT Discharge
• Finish: Epoxy Powder Coated
• HP Rating: 4/10 hp
• Item Name: Effluent Pump
• Maximum Feet of Head: 38 ft
• Model: N152
• Series: Dose-Mate
• Voltage Rating: 115 VAC
• Running Amps: 8.5
• Thermal Protection: Yes
• Oil Free Motor: No
• Nominal Voltage: 120 Volt
• Handles Solids: Yes
• GPH @ 0 feet: 4140
• GPH @ 5 feet: 4140
• GPH @ 10 feet: 3660
• GPH @ 15 feet: 3180
• GPH @ 20 feet: 2640
• Discharge Port Size: 1-1/2 Inch
• Check Valve Included: No
• Max Head: 38 Feet
• Submersible: Yes
• Horsepower: .4 HP
