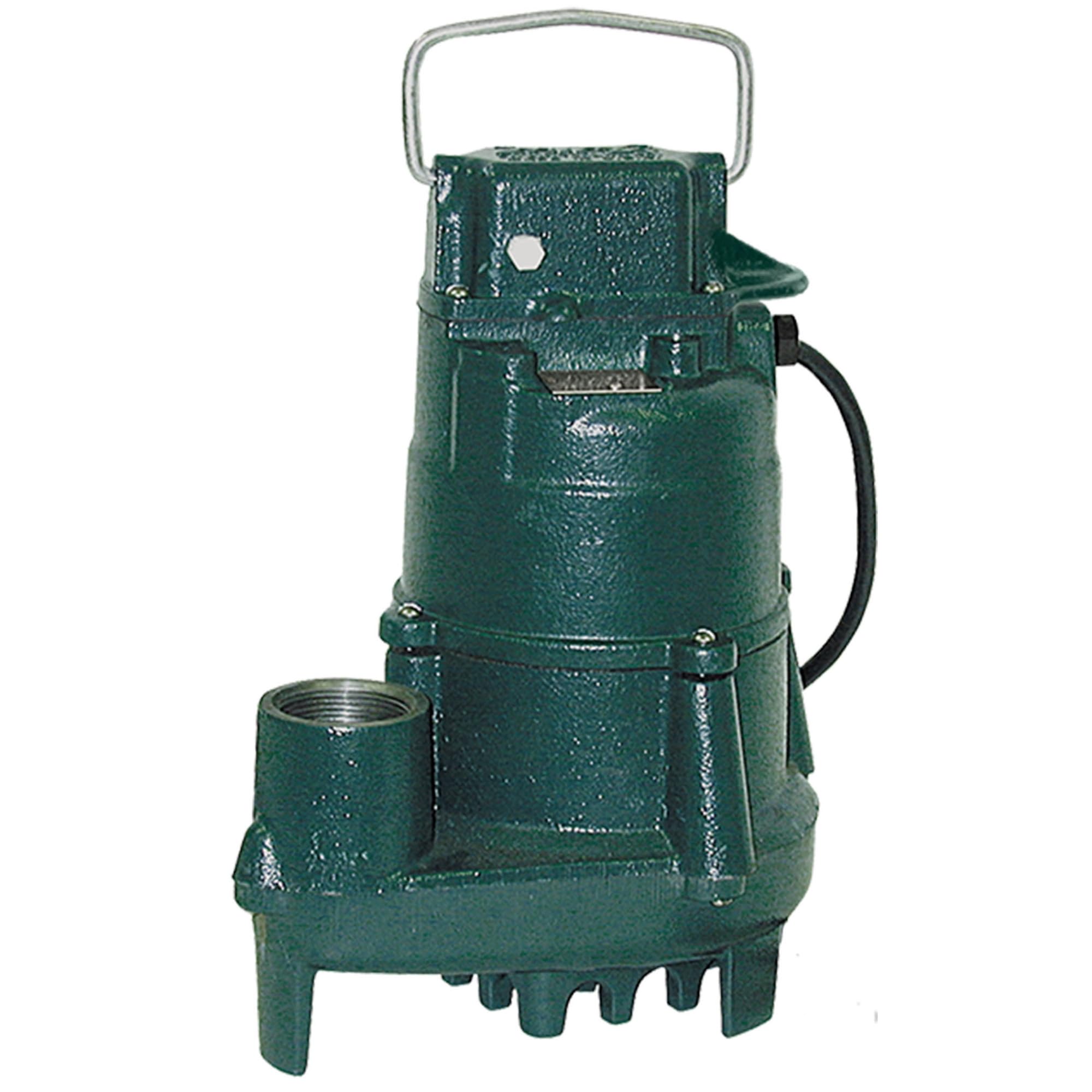

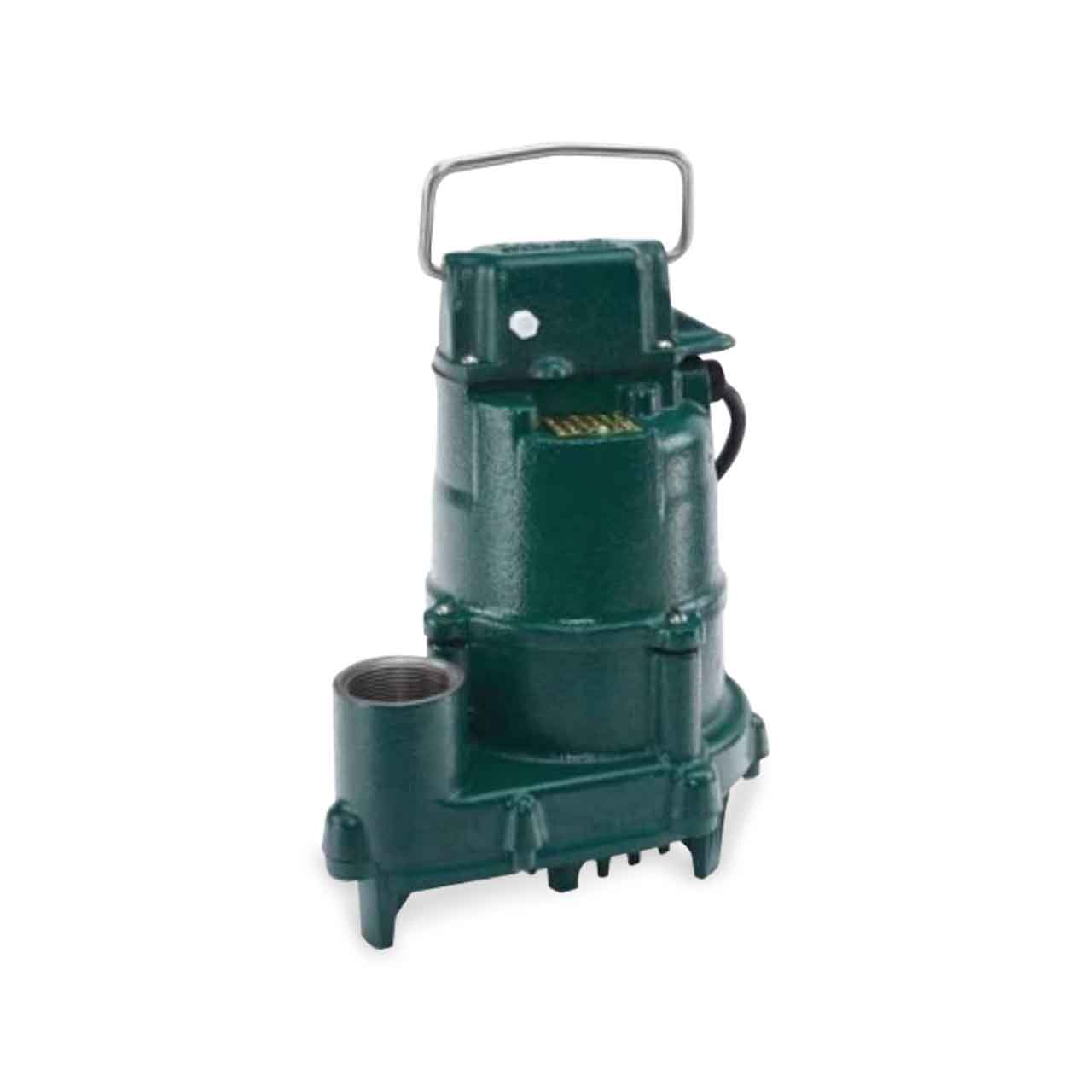

Zoeller 153-0002 115V Manualual Effluent Pump

Product Description

The ZOELLER 153-0002 is a 115V Manualual Effluent Pump. This high head submersible pump is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. Each pump is 100% pressure-tested, submerged and run to ensure quality and reliability.

• Corrosion-resistant, powder coated epoxy finish
• Cast iron cap, motor housing, and pump housing
• Non-clogging engineered thermoplastic vortex impeller design

Product Highlights

The ZOELLER 153-0002 effluent pump is ideal for septic systems, low pressure pipe (LPP), and enhanced flow STEP system applications.

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 153-0002
• Country of Origin: United States

Technical Specifications

• Item Model Number: 153-0002
• Manufacturer: Zoeller
• Brand: Zoeller
• HP: 1/2 HP
• Type: Single Seal, Non-Auto Mode, Submersible
• Mfg #: 153-0002
• Material: Cast Iron
• Series: 153
• Volts: 115V
• Style: Single Phase,Non-Automatic
• RPM: 3450
• Hertz: 60
• Modes: Non-Automatic
• Phase: 1 Ph
• Voltage: 115V
• Amperage: 10.5
• Cord Type: UL Listed, 3-Wire Neoprene Cord & Plug
• Application: Plumbing, Effluent
• Cord Length: 20' (6 m)
• Horse Power: 0.5 HP
• Flow at 5 FT Head: 77 GPM
• Shutoff Head (ft.): 44'
• Flow Rate: 77 GPM
• Motor Type: Class B Insulation Oil Filled Hermetically Sealed Permanent Split Capacitor
• Solid Size: 3/4 Inch
• Discharge Head: 44 Foot
• Discharge Size: 1-1/2 Inch
• End Connection: Threaded
• Shaft Material: Aisi 1215 Steel
• Impeller Design: Non-Clogging Vortex
• Housing Material: Powder Coated Cast Iron
• Product Sub-Type: Effluent Pump
• Impeller Material: Engineered Plastic
• Power Cord Length: 20 Foot
• Overall Dimensions: 10 Inch Length x 7-3/4 Inch Width x 11-11/16 Inch Height
• Shaft Seal Details: Carbon-Ceramic Mechanical Seal
• Temperature Rating: 130 Deg F
• Applicable Standard: UL 778, CSA (Canada and US), CSA C22.2 108, SSPMA
• Inclusions/Features: Upper Sleeve and Lower Ball Bearing, Stainless Steel Hardware, Neoprene Square Ring and Gasket, Plastic or Cast Iron Base, Cast Iron Motor Housing, Cast Iron Cap, Stainless Steel (Lifting Handle/Bolt), 1-1/2 Inch x 2 Inch PVC Adapter Fitting
• Input Supply Rating: 115 Volt AC 60 Hertz 1-Phase 10.5 Amp
• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 10.5
• MAXIMUM HEAD: 44'
• MAXIMUM CAPACITY: 77 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 1-1/2" NPT
• MAXIMUM SOLIDS HANDLING: 3/4" Spherical Solid
• IMPELLER TYPE: Engineered Thermoplastic, Non-Clogging Vortex
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
• Amps: 10.5
• Discharge: 1-1/2" NPT
• Solids Handling: 3/4" (19 mm) spherical solids
• On/Off Points: Variable level- customer set
• Impeller Type: Vortex
• Power Source: Ac/dc
• Casing Material: Powder Coated Epoxy Cast Iron
• Options: Pump Stand
• Product Type: Effluent
