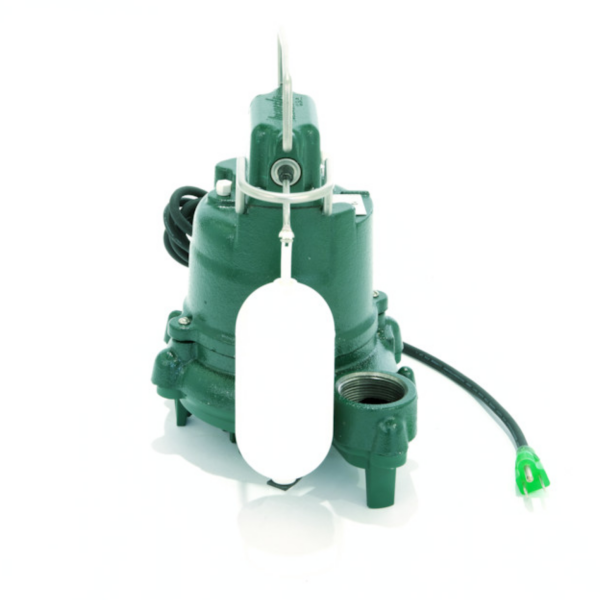

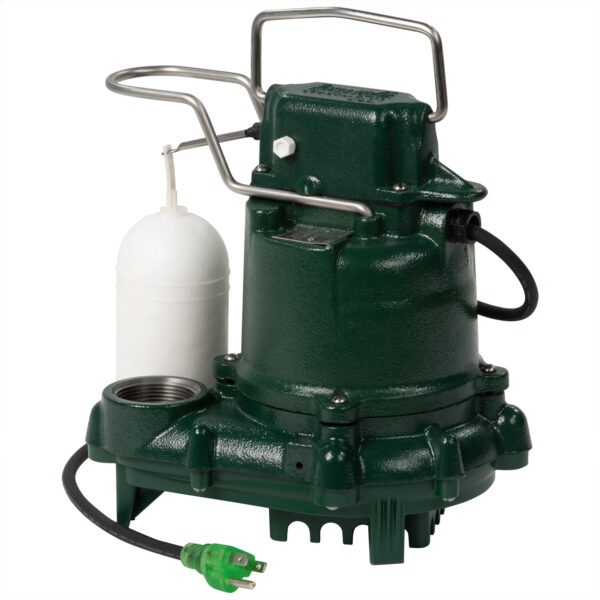

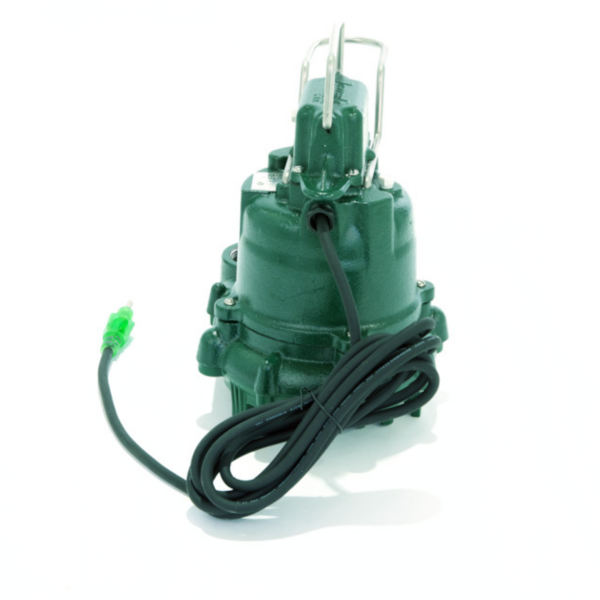

Zoeller M53D 1-1/2 CI Sump Pump 1/3 HP

Product Description

The ZOELLER M53D 1-1/2 CI Sump Pump is an automatic Mighty-Mate submersible sump pump. It is designed to remove unwanted groundwater in basement sump applications. The pump features a cast iron housing and a plastic impeller with a metal insert. It is C/US certified to CSA standards and SSPMA certified. Every pump is submerged in water and tested to its published performance curve.

• Automatic Mighty-Mate Submersible Sump Pump
• Cast Iron Housing
• Vertical Float Switch

Product Highlights

This sump pump is ideal for basement applications, removing unwanted groundwater with its durable cast iron housing and automatic vertical float switch.

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: M53D
• Country of Origin: United States

Technical Specifications

• Series/Model: Model 53
• Size: 1-1/2 IN
• Maximum Head: 19.25 FT
• Flow Rate: 43 GPM
• HP Rating: 1/3 HP
• Voltage Rating: 115 VAC
• Amperage Rating: 9.7 A
• Frequency Rating: 60 HZ
• Phase: 1 PH
• RPM Rating: 1550 RPM
• Switch Type: Vertical Float
• Housing: Cast Iron
• Impeller: Plastic With Metal Insert
• Shaft: AISI 1215 Cold Rolled Steel
• Connection Type: NPT
• Finish/Color: Epoxy Coated
• Temperature Rating: 130 DEG F
• Industry Standards: C/US Certified To CSA Standard C22.2 Number 108, Tested To UL Standard UL778, SSPMA Certified
• Maximum Diameter Solids: 1/2 IN
• Off Point: 3 IN
• On Point: 7-1/4 IN
• Cord Length: 9 FT
• Horsepower: 3/10 HP
• Discharge: 1-1/2" NPT
• Solids Handling: 1/2" (12 mm) spherical solids
• Impeller Material: Engineered Plastic
• Impeller Type: Vortex
• Maximum Flow Rate: 34 Gpm
• Maximum Working Temperature: 140°F (60°C)
• MPN: 53-0001
• Brand: Zoeller
• Type: Sump Pump
• Manufacturer Warranty: 3 Years
• Model: Zoeller M53-D 53-0001
• Features: Submersible, automatic, cast iron, factory tested
• Maximum Head Lift: 19.25 ft
• Power: 0.3 HP / 115V AC
