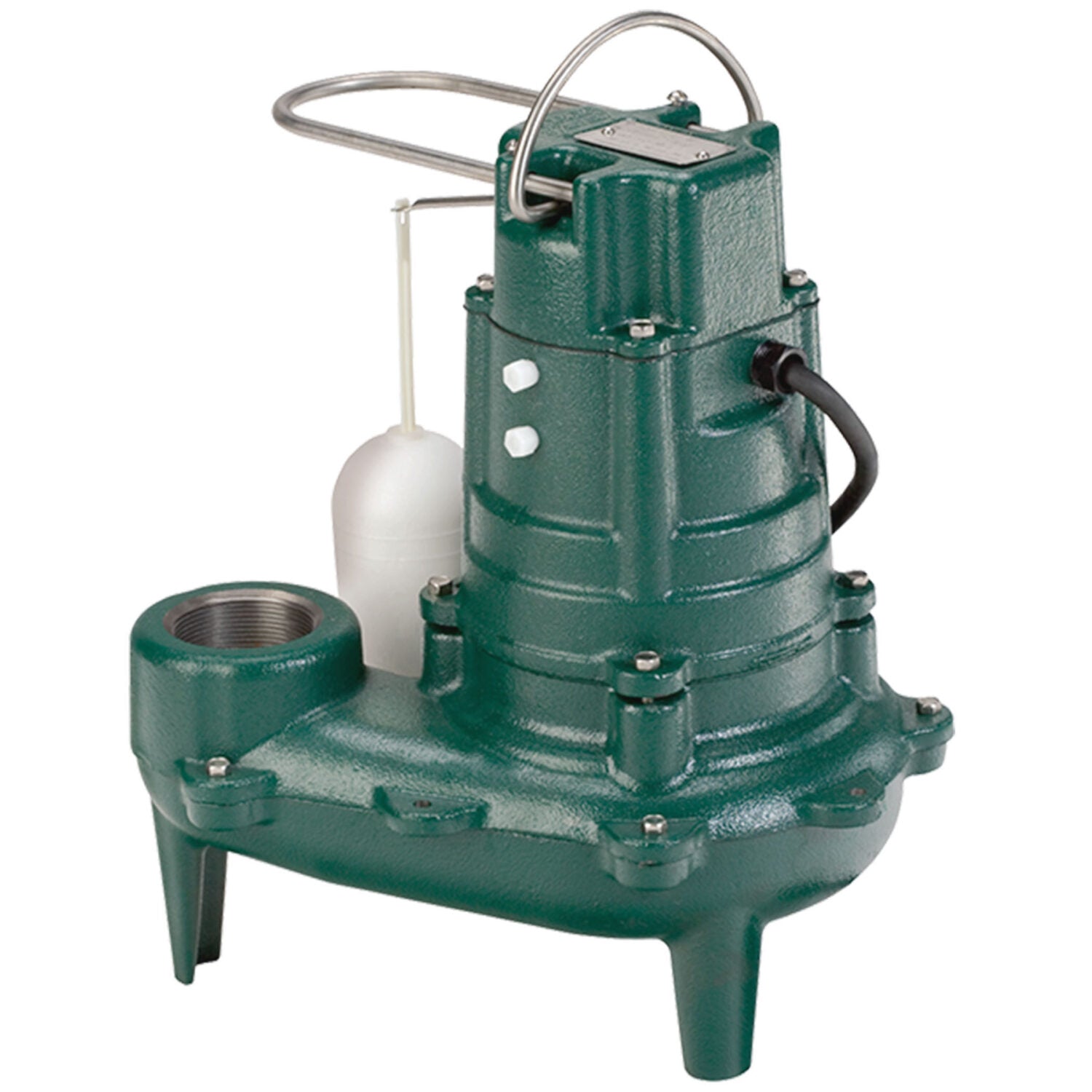

Zoeller M267 Waste Sewage Pump 0.5 Hp 115V 2in Npt

Product Description

The ZOELLER m267 waste is a 0.5 HP automatic sewage pump built for sewage ejector applications in residential and light commercial settings. Running on 115 volts at 9.4 amps and 1725 RPM, it delivers reliable performance in demanding below-grade drainage systems. The vortex impeller is made from engineered plastic for corrosion resistance, and the pump is capable of passing 2-inch spherical solids, reducing the risk of clogs during normal operation. Every unit is factory-tested submerged in water against its published performance curve before shipment. A 10-foot cord is included, and the unit carries a 3-year manufacturer warranty.

This pump is intended for sewage ejector pit installations where gravity drainage is not available, such as basement bathrooms, laundry rooms, or below-grade utility areas. It is sized for residential and small commercial applications where a single-phase, 115-volt power supply is standard. The automatic float switch activates and deactivates the pump at preset on and off points, making it suitable for unattended operation in ejector basins. Licensed plumbers typically handle installation to meet local code requirements.

Key Features

• 0.5 HP motor rated at 115 volts, 9.4 amps, 60 Hz, single phase
• Vortex impeller in engineered plastic handles 2-inch spherical solids
• Automatic operation with on point at 12 inches and off point at 4 inches
• 2-inch NPT discharge connection for standard ejector system piping
• 10-foot power cord included for pit installations
• Factory submerged and performance-curve tested before shipment
• 3-year manufacturer warranty

Compatibility

Designed as an OEM-style fit for residential and light commercial sewage ejector applications requiring a 2-inch NPT discharge and single-phase 115-volt power.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off power to the circuit at the breaker panel before handling the pump or any wiring in the ejector basin. Ensure the basin cover is properly sealed after installation to contain gases and meet code requirements. Do not operate the pump dry or without the basin filled to the minimum operating level.

Technical Specifications

• Horsepower: 0.5 HP
• Voltage: 115 volts
• Amperage: 9.4 amps
• Phase: Single phase
• Frequency: 60 Hz
• Motor Speed: 1725 RPM
• Discharge Connection: 2-inch NPT
• Solids Handling: 2-inch spherical solids
• Float Switch On Point: 12 inches
• Float Switch Off Point: 4 inches
• Impeller Type: Vortex
• Impeller Material: Engineered Plastic
• Cord Length: 10 feet
• Shipping Weight: 47.5 pounds
• Shipping Dimensions: 16.25 inches H x 11 inches W x 13.5 inches L
• Warranty: 3 years

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: m267 waste
