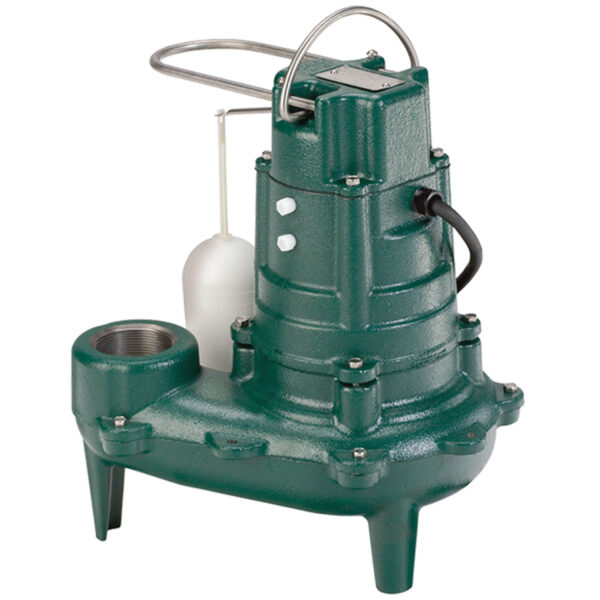

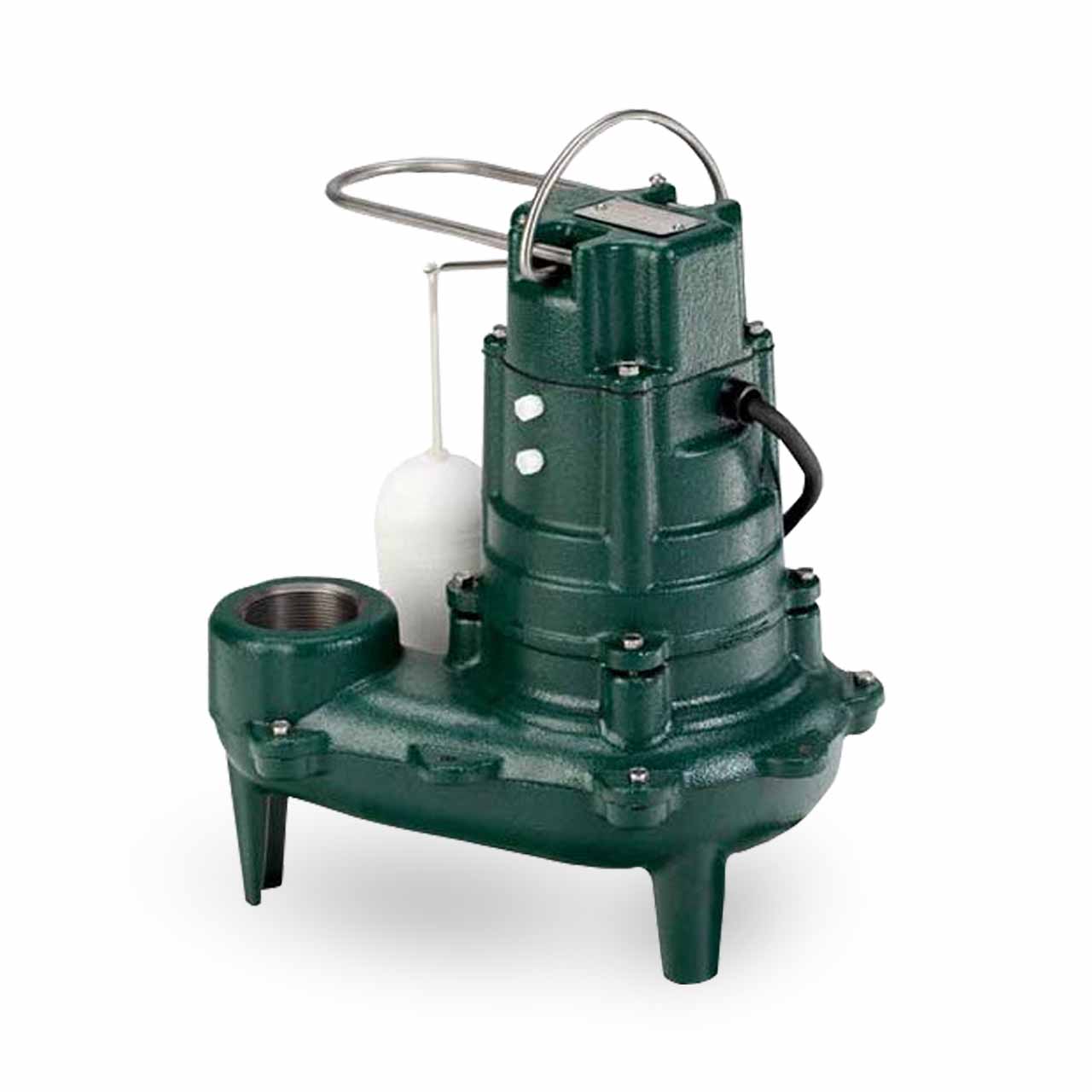

Zoeller M267 Waste-Mate Submersible Sewage Pump 1/2 HP

Product Description

The ZOELLER M267 Waste-Mate is a submersible sewage pump with a built-in float switch, designed for residential, commercial, or industrial sewage/dewatering applications. It passes 2-inch spherical solids and features a corrosion-resistant, powder-coated epoxy finish. The pump has a float-operated, submersible (NEMA 6) 2-pole mechanical switch and durable cast iron construction.

• Auto Eject
• Built-in Float Switch
• Designed for residential, commercial, or industrial Sewage/dewatering
• Passes 2 in. spherical solids

Product Highlights

This ZOELLER Waste-Mate M267 sewage pump is ideal for removing raw sewage and wastewater in ejector applications. It features a non-clogging impeller, cast iron construction, and a corrosion-resistant finish.

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: M267
• Country of Origin: United States

Technical Specifications

• Warranty: 3 yr
• Type: Submersible Sewage Pump
• Brand: Zoeller
• Hertz: 60 Hz
• Phase: 1
• Series/Model: Model 267
• Voltage: 115 V
• Amperage: 10.4 A
• Includes: Built-In Float Switch
• Material: Cast Iron
• Horsepower: 1/2 HP
• Submersible: Yes
• Switch Type: Automatic
• Base Material: Cast Iron
• Max Head: 21.5 ft
• Connection Type: NPT
• Gallons per Hour: 7680 gal/hr
• Cord Length: 10 ft
• Impeller Material: Thermoplastic
• Gallons per Minute: 128 gal/min
• Thermal Protection: Yes
• Shaft Seal Material: Carbon, Ceramic
• Rotations per Minute: 1725 rpm
• Inlet Connection Type: NPT
• Max Fluid Temperature: 130 °F
• Switch On Height: 12 in
• Switch Off Height: 4 in
• Max Diameter Solids: 2 in
• Discharge Connection Type: NPT
• Manufacturers Part Number: M267
• Certifications: CSA
• Min Sump Pit Diameter: 18 in
• Discharge Connection Size: 2 in
• Flow Rate: 128 GPM
• Housing Material: Cast Iron
• Impeller: Plastic With Metal Insert
• Shaft: AISI 1215 Cold Rolled Steel
• Temperature Rating: 130 DEG F
• Industry Standards: C/US Certified To CSA Standard C22.2 Number 108, Tested To UL Standard UL778, SSPMA Certified
• Solids Handling: 2" (50 mm) spherical solids
• Impeller Type: Vortex
• Running Amps: 10.4
• Handles Solids: Yes
• Float Type: Vertical Float
• GPH @ 0 feet: 7680
• GPH @ 5 feet: 7680
• GPH @ 10 feet: 5340
• GPH @ 15 feet: 3000
• GPH @ 20 feet: 600
• Check Valve Included: No
• Manual Override: No
