Zoeller BN152 High Head Effluent Pump 1/4 HP (1-1/2 inch NPT)

Brand: ZOELLER
SKU: BN152
Availability: In Stock

Ships same day if ordered by 12 pm
$470.87
$470.87
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

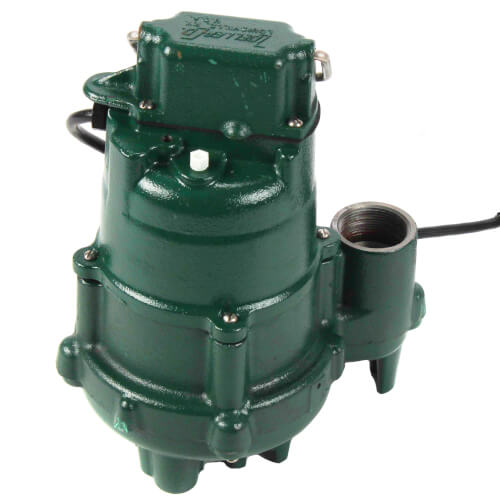

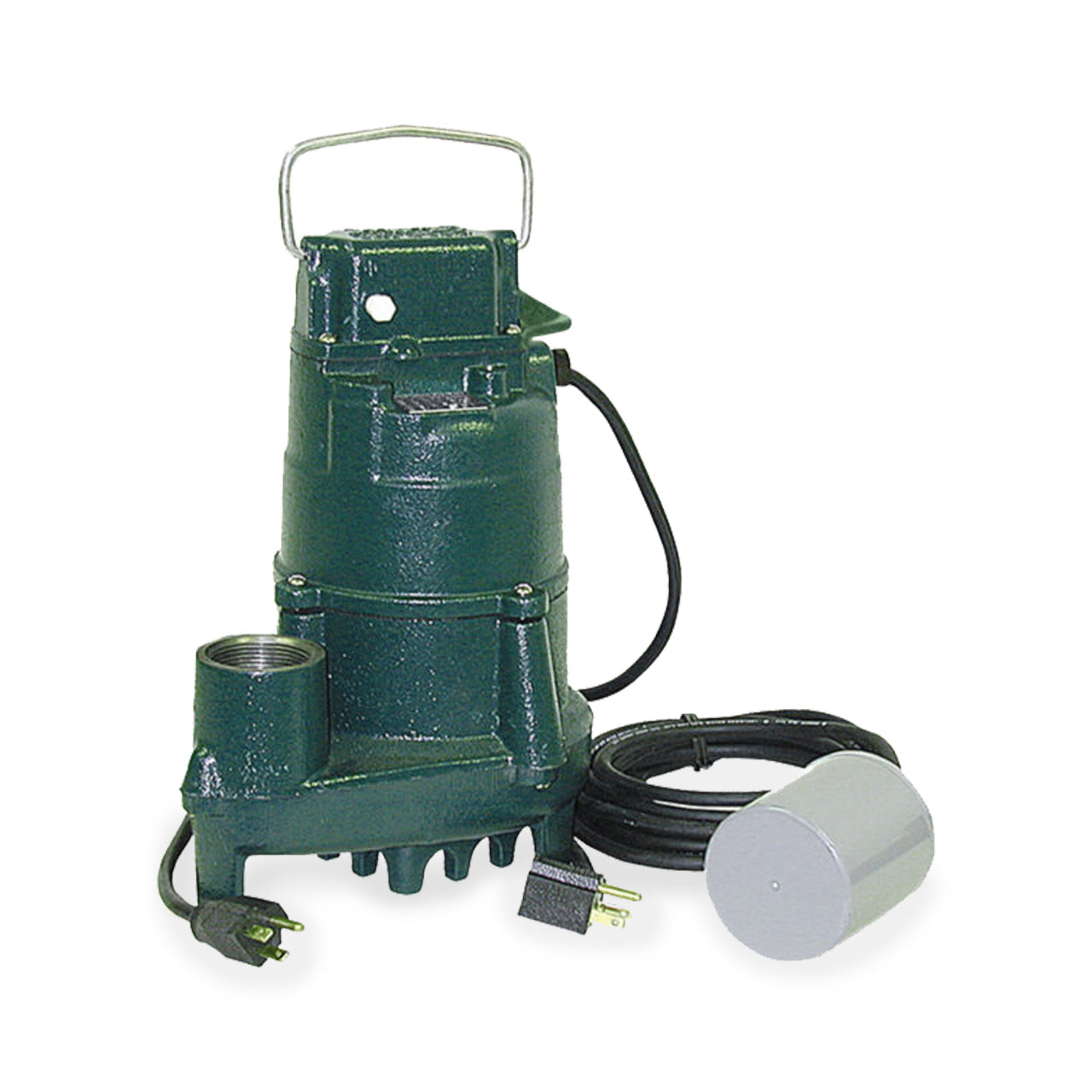

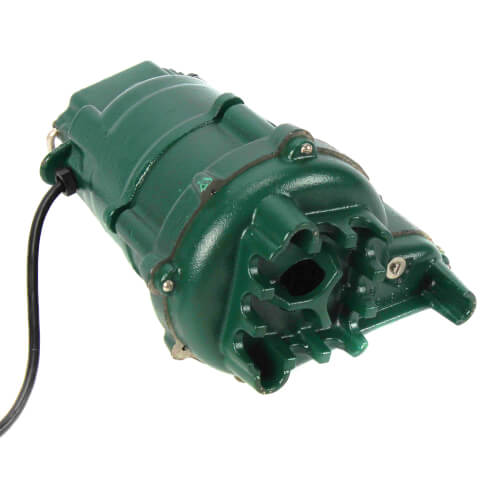

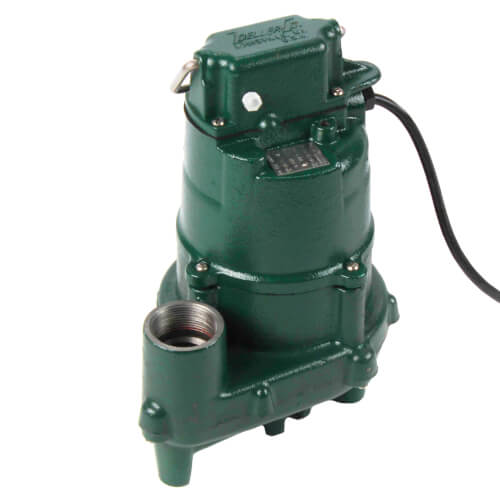

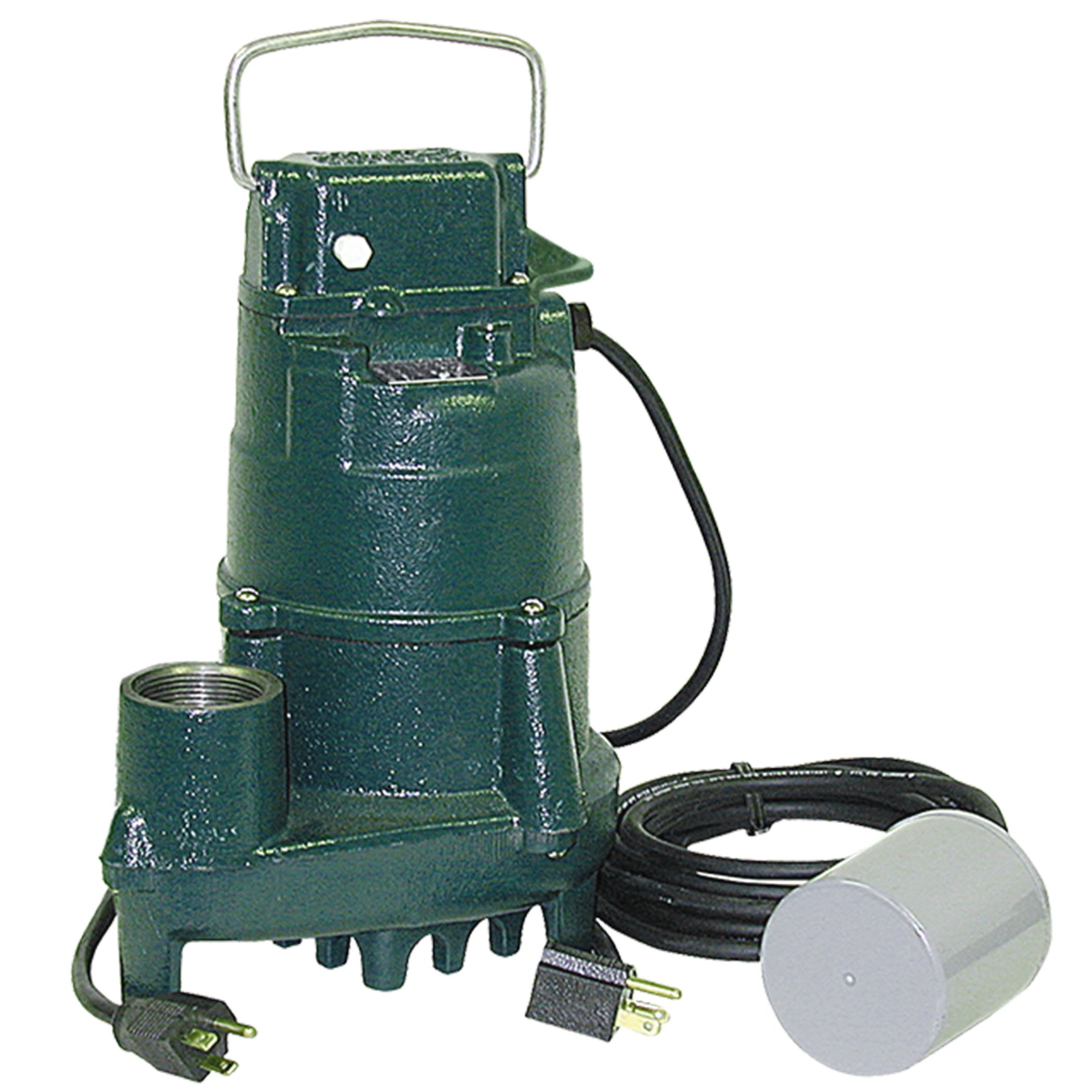

Zoeller BN152 is a high-head effluent submersible pump rated 1/4 HP and 115 volts, intended for residential or light commercial dewatering and effluent transfer. The unit has a 3450 RPM oil-filled motor with carbon/ceramic seals, an engineered thermoplastic vortex impeller, 1-1/2 inch NPT vertical discharge, 69 GPM maximum flow and 38 ft maximum head. It includes a 20 ft variable level float switch and a 20 ft UL-listed power cord and passes 3/4 inch spherical solids while operating up to 130 F.

  • Motor: 3450 RPM oil-filled hermetically sealed motor with automatic reset thermal overload protection; 115 V, 1 phase, 4.3 A
  • Performance: 69 GPM maximum flow, 38 ft maximum head, 1-1/2 inch NPT vertical discharge
  • Construction: Cast iron body with powder-coated epoxy finish, stainless steel handle and hardware, engineered thermoplastic vortex impeller; includes 20 ft variable level float switch and 1-1/2 inch x 2 inch PVC adapter

Product Highlights

High-head 1/4 HP submersible effluent pump, 1-1/2 inch NPT discharge, 69 GPM, 38 ft head, 20 ft float switch, passes 3/4 inch solids

Product Information

Standard Information

  • Brand: ZOELLER
  • Manufacturer Part Number: BN152
  • Country of Origin: United States
Technical Specifications
Brand
Zoeller
Manufacturer Part Number
BN152 / 152-0005
Model
BN152
Product Type
High head effluent submersible pump
Power
1/4 HP
Input Voltage
115 V
Phase
Single phase
Current
4.3 A
Motor Speed (RPM)
3450 RPM
Motor Type
Oil-filled, hermetically sealed motor with automatic reset thermal overload protection
Discharge Size
1-1/2 inch NPT vertical
Maximum Flow
69 GPM
Maximum Head
38 ft
Cord Length
20 ft (UL-listed power cord with molded 3-wire plug)
Operation
Automatic (includes 20 ft variable level float switch)
Impeller Type
Engineered thermoplastic vortex impeller (non-clogging)
Solids Handling
Passes 3/4 inch spherical solids
Materials / Construction
Cast iron pump housing; stainless steel lifting handle, float guard, switch arm and bolts; powder-coated epoxy finish
Seals
Carbon/Ceramic seals
Temperature Rating
Operates up to 130 F in effluent applications
Included Adapter
1-1/2 inch x 2 inch PVC adapter fitting
Mounting Type
Submersible
