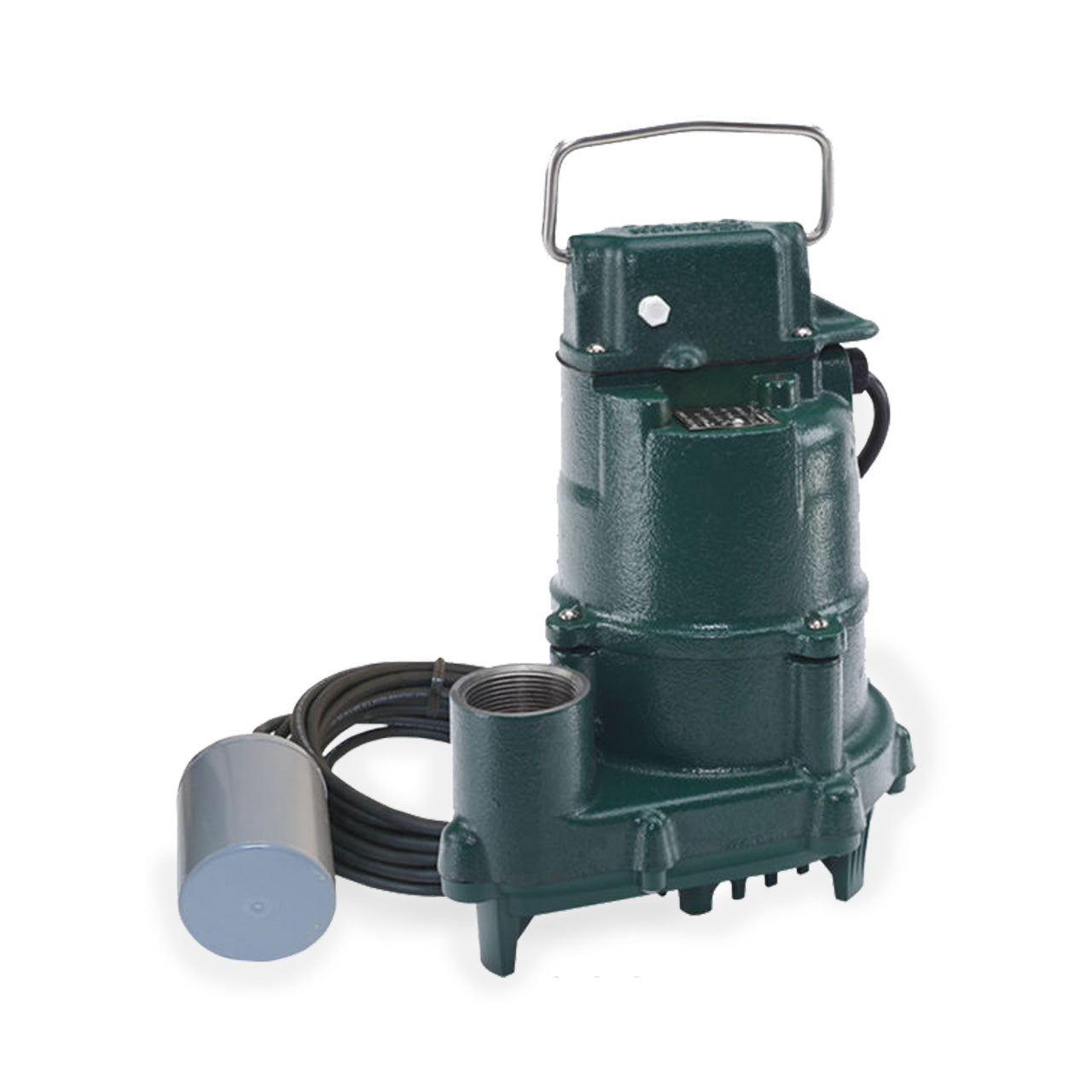

Zoeller BN151 Dose Mate High Head Effluent Pump with Piggyback Variable Level Float Switch 0.3 HP

Brand: ZOELLER
SKU: BN151
Availability: In Stock

Ships same day if ordered by 12 pm
$552.40
$552.40
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Zoeller BN151 is a Dose Mate high-head effluent submersible pump with a piggyback variable level float switch, rated 0.3 HP. The pump is intended for residential or light commercial dewatering, groundwater transfer, and septic effluent applications. It uses a non-clogging thermoplastic vortex impeller, an oil-filled 3450 RPM motor with thermal overload protection, a 1-1/2" NPT vertical discharge, and a 20 ft UL-listed power cord and float switch.

  • Cast iron housing with powder-coated epoxy finish and glass-filled polypropylene base; passes 1/2" spherical solids
  • Oil-filled, hermetically sealed motor, 3450 RPM, automatic reset thermal overload protection; upper sleeve and lower ball bearings in oil bath
  • 20 ft UL-listed 3-wire neoprene power cord with molded plug and 20 ft piggyback variable level float switch; 1-1/2" NPT discharge

Product Highlights

High-head effluent pump for dewatering and septic system use with variable-level automatic control and solids-handling vortex impeller.

Product Information

Standard Information

  • Brand: ZOELLER
  • Manufacturer Part Number: BN151
  • Country of Origin: United States
Technical Specifications
Brand
Zoeller
MPN
BN151
Horsepower
0.3 HP
Input Voltage
115 V (single-phase)
Phase
1
Frequency
60 Hz
Full Load Amps
�8 A (at 115 V) � estimated/typical running current; inrush/start currents higher
RPM
3450 RPM
Maximum Head
30 ft
Maximum Flow
50 GPM
Discharge Size
1-1/2" NPT (vertical)
Cord Length
20 ft
Cord Type
UL-listed 3-wire neoprene power cord with molded plug
Float Switch
20 ft piggyback variable level float switch (field adjustable)
Impeller Type
Non-clogging engineered thermoplastic vortex impeller
Solids Handling
Passes 1/2" (12 mm) spherical solids
Motor Fill
Oil filled
Seals
Carbon/ceramic mechanical seals
Bearings
Upper sleeve bearing and lower ball bearing running in oil bath
Materials
Cast iron housing; glass-filled polypropylene base
Operating Temperature
Up to 130 F (54 C) in effluent applications
Included Adapter
1-1/2" x 2" PVC adapter fitting
Motor Protection
Automatic reset thermal overload protection
Application
Effluent, plumbing, dewatering, groundwater transfer, septic systems
