Zoeller 912-1007 Preassembled Sewage Package System 4/10 HP 115 Volts (18 inches x 30 inches)

Product Description

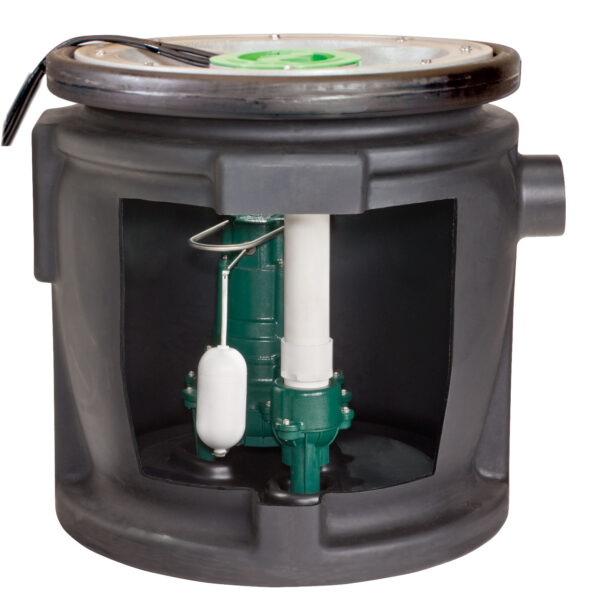

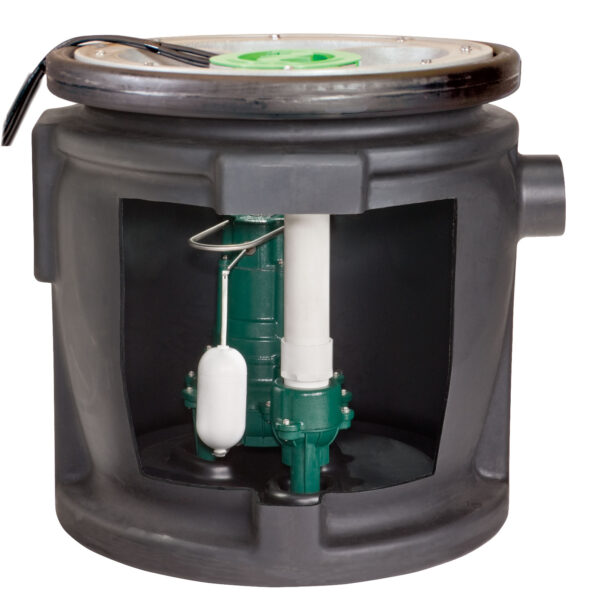

The ZOELLER 912-1007 is a preassembled Simplex Sewage Package System, designed for efficient and quick installation. This automatic system includes an M264 pump, an 18" x 30" poly structural foam basin, and an Indoor APak high water alarm. The 4/10 HP, 115V pump handles 2" spherical solids with a 2" NPT discharge. The 30-gallon basin features a 4" inlet for main sewage line connection and a pre-drilled vent hole to prevent airlock.

• Preassembled Simplex Sewage Package for job-ready, quick installation.
• Includes automatic M264 pump (4/10 HP, 115V) with integral float switch and high water alarm.
• Features an 18" x 30" poly structural foam basin with 30-gallon capacity and 2" NPT discharge.

Product Highlights

Job-ready preassembled sewage package system ensures quick installation and reduces errors.

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 912-1007

Technical Specifications

• Size: 18" x 30"
• Type: Automatic
• Used With: M264 Pump
• Weight: 56 lbs
• Basin Capacity: 30 gallon (113 liter)
• Horsepower: 4/10 HP
• Input Voltage: 115V
• Frequency: 60 Hz
• Amperage: 9.4 amps
• Phase: single phase
• Discharge Size: 2" NPT
• Solids Handling: 2" spherical solids
• On Point: 12-1/2"
• Off Point: 4-1/2"
• Alarm Type: APak High Water Alarm
• Alarm Enclosure: NEMA 1
• Alarm Decibels: 86 decibels at 10'
• Inlet Size: 4"
• Vent Hole Size (Basin): 2"
• Vent Hole Size (Discharge): 3/16"
• Max GPM: 90 GPM
• Max Head: 18 ft
• Use Environment: Indoor Use
