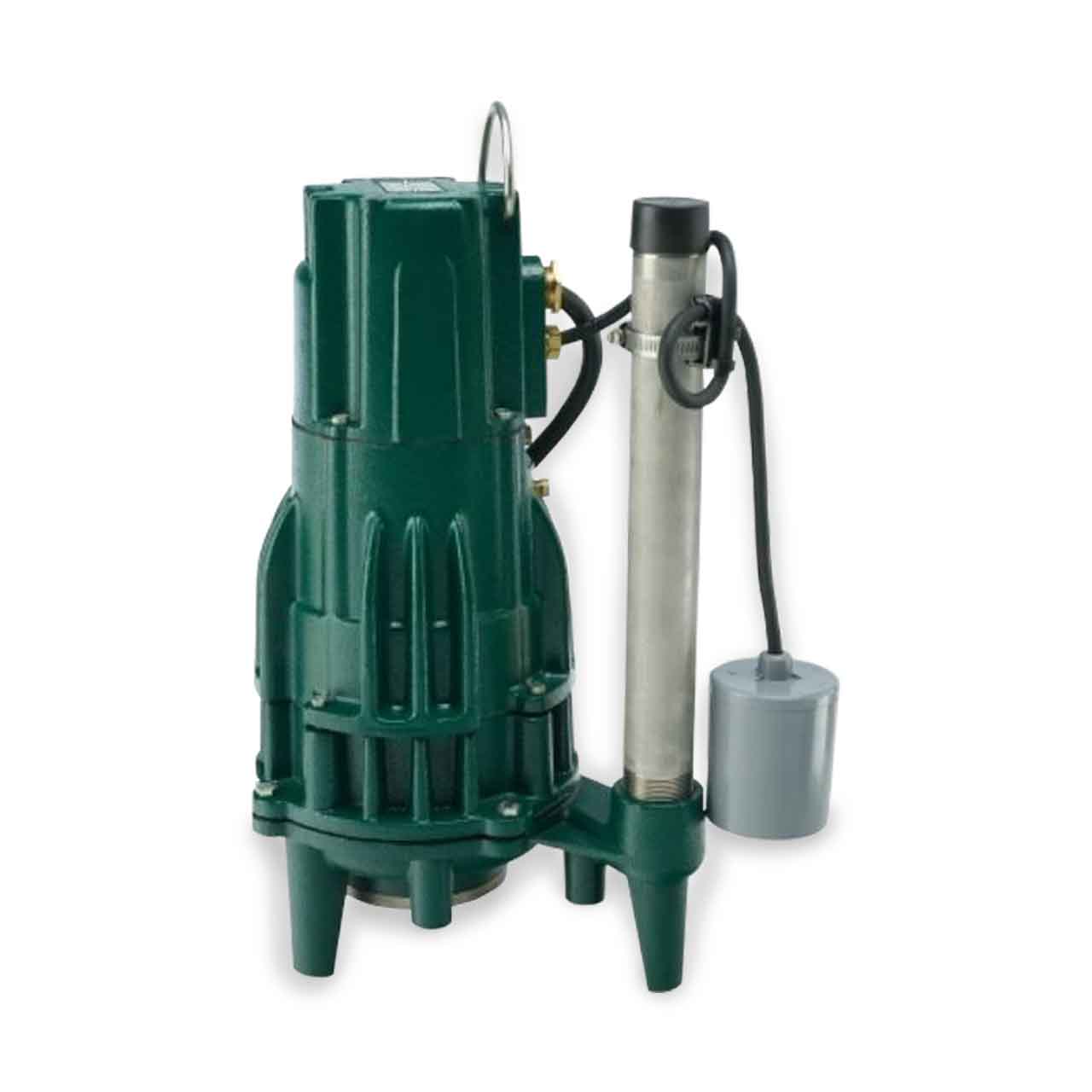

Zoeller 820-0011 Shark Se Automatic Grinder Pump 2 HP

Product Description

The ZOELLER 820-0011 Shark SE Automatic Grinder Pump is designed for residential or commercial wastewater applications. This pump features a cutting mechanism to grind solids into fine particles, reducing the risk of clogs. Constructed with durable cast iron and a powder-coated epoxy finish for corrosion resistance. 100% factory tested.

• Durable cast iron construction with powder coated epoxy finish
• Automatic model with integral control

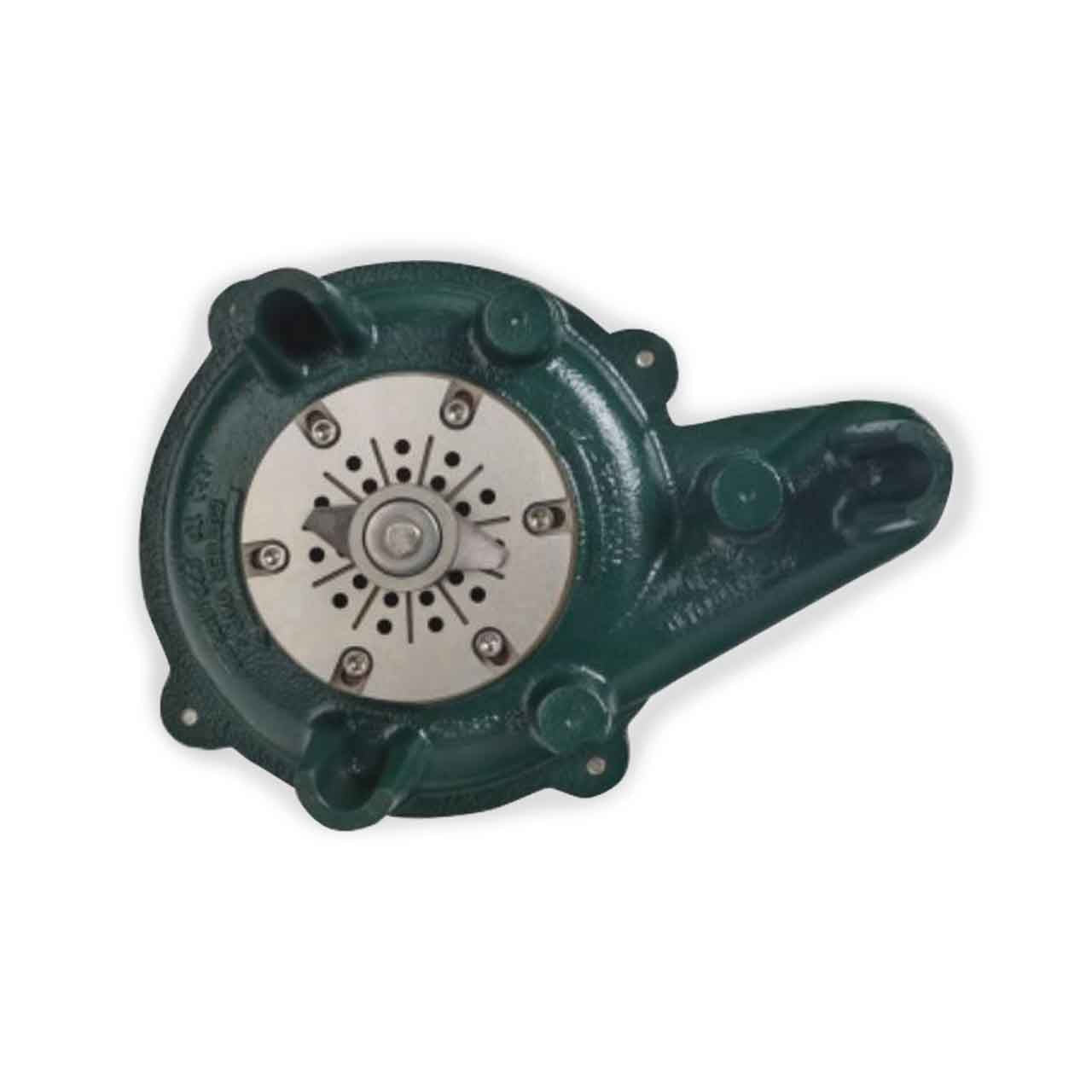

• Hardened stainless steel cutter and disc

Product Highlights

The ZOELLER Shark SE grinder pump is ideal for handling unscreened raw sewage, ensuring reliability and reducing downtime.

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 820-0011
• Country of Origin: United States

Technical Specifications

• Style: Grinder Pump
• Material: Stainless Steel, Cast Iron
• Voltage: 230 V
• Amps: 13.7 A
• Height (In.): 18-5/8 In.
• Dia. (In.): 11-5/8
• Cord Length: 20 ft
• Discharge NPT: 1-1/4"
• GPM of Water @ 5 Ft. of Head: 46
• GPM of Water @ 80 Ft. of Head: 27
• Max. Head: 107 ft
• Max. Temp.: 130 deg F
• Phase: 1
• RPM: 3450
• Impeller Material: Engineered Plastic
• Base Material: Cast Iron
• Housing Material: Powder Coated Epoxy Cast Iron
• Switch Type: Integral
• Horsepower: 2 HP
• Frequency: 60 Hz
• Motor Type: CSCR
• Shaft Seal Material - Pumps: Carbon, Ceramic
• Switch Actuation: Tether Float
• Switch Electrical Connection: Piggyback
• Flow Rate @ 10 Ft. of Head: 46.0 gpm
• Flow Rate @ 15 Ft. of Head: 46.0 gpm
• Flow Rate @ 20 Ft. of Head: 46.0 gpm
• Flow Rate @ 40 Ft. of Head: 46.0 gpm
• Flow Rate @ 60 Ft. of Head: 43.0 gpm
• Maximum operating temperature: 130 °F (54 °C)
• Discharge: 1-1/4 in
• Flow Rate: 46 GPM
• Rated Voltage: 230V AC
• Body Material: Cast Iron
• Max. Liquid Temp.: 130 Degrees F
• Thermal Protection: Yes
• Type: Vertical, Automatic, Single Seal
• Applicable Standard: UL, CSA (Canada and US)
• Application: Residential, Light Commercial Sewage Grinder
• Cutter Material: 404C Hardened Stainless Steel
• Disc Material: 404C Hardened Stainless Steel
• Discharge Head: 107 Foot
• Discharge Size: 1-1/4 Inch
• End Connection: Threaded Outlet
• Inclusions/Features: Capacitor Start, Cast Iron Adapter, Upper and Lower Ball Bearing, Engineered Plastic with Stainless Steel Insert Vortex Impeller, 304 Stainless Steel Hardware, Neoprene Gasket and Square Ring
• Input Supply Rating: 230 Volt AC 1-Phase 13.7 Amp
• Motor Type [Specifications]: Oil Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protection, Class B Insulation
• Overall Dimensions: 8 Inch Length x 11-5/8 Inch Width x 18-5/8 Inch Height
• Power Cord Length: 20 Foot
• Power Rating: 2 HP
• Product Sub-Type: Grinder Pump
• Product Type: Pump and Accessories
• Series/Model: 820
• Shaft Material: 416 Stainless Steel
• Shaft Seal Details: Carbon and Ceramic Mechanical Seal
• Speed Rating: 3450 RPM
• Temperature Rating: 130 Deg F
• Warranty: 1 Year (Date of Purchase), 18 Month (Date of Manufacture)
• Phase - Pumps [Specifications]: 1
• Voltage - Pumps [Specifications]: 240VAC
• Discharge Gender [Specifications]: Female
• Agency Compliance [Specifications]: cCSAus, UL
• Impeller Material - Pumps [Specifications]: Polypropylene
• Max. Head - Pumps [Specifications]: 107 ft.
• Discharge Standard [Specifications]: NPT
• Min. Sump Pit Dia. [Specifications]: 24 in
• Pump Body Material [Specifications]: Cast Iron
• Cord Length - Pumps [Specifications]: 20 ft.
• Switch Type - Pumps [Specifications]: Integral
• Item - Grinder Pumps [Specifications]: Grinder Pump
• Shaft Seal [Specifications]: Carbon Ceramic
• Built-In Grinder: Yes
• Coating: Epoxy
• Diameter: 11-21/32 in
• Discharge Configuration: Vertical
• End Connection 1: NPT
• End Connections: NPT
• Height: 21-1/4 in
• Length: 14-3/4 in
• Maximum Feet of Head: 107
• Maximum Temperature: 130
• Pump Application: Sump
• Pump Body Material: Ductile Iron
• Pump Motor Type: Capacitor Start/Capacitor Run
• Pump Phase: 1
• Volts: 230V
• Width: 11-3/4 in
• Amperage Rating: 13.7 A
• Automatic/Non Automatic: Automatic
• Outlet Size: 1-1/4 in NPT
• Series: Shark®, 820
• Enclosure Type: NEMA B
• Finish: Powder Coated Epoxy
• Running Amps: 13.7
• Oil Free Motor: No
• Float Type: Tether Switch
• Discharge Port Size: 1-1/4 Inch
• Check Valve Included: No
• Consumer Warranty: 3 Years
• Product Length: 11.625 Inches
• Product Width: 8 Inches
• Product Height: 18.625 Inches
• Hertz: 60 Hz
